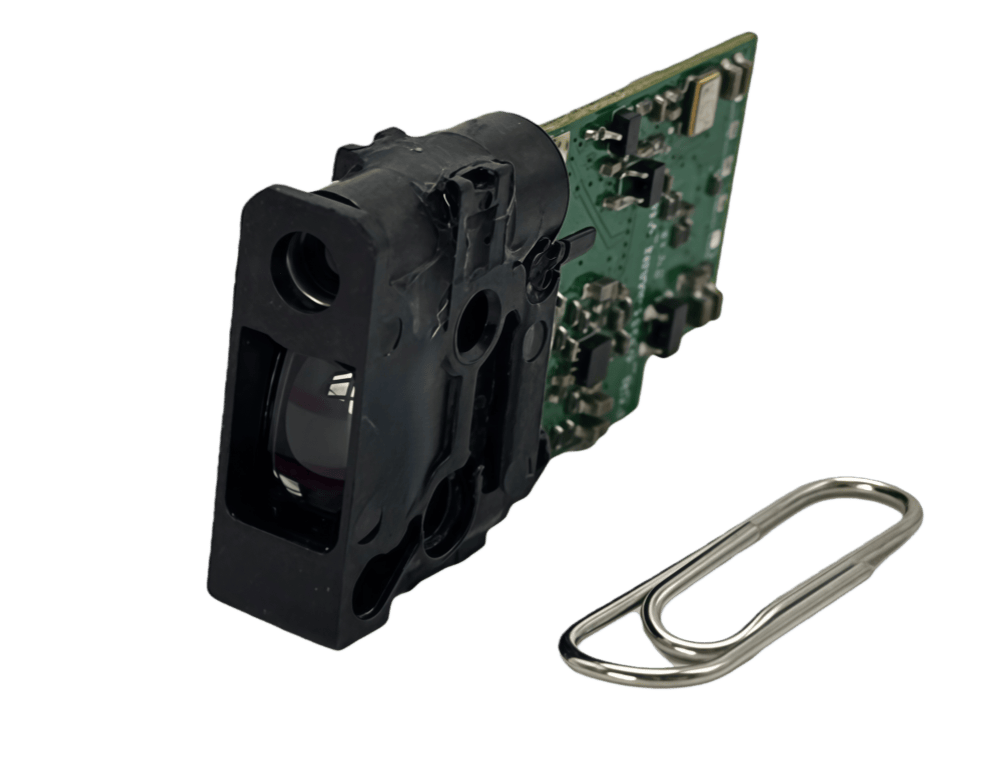

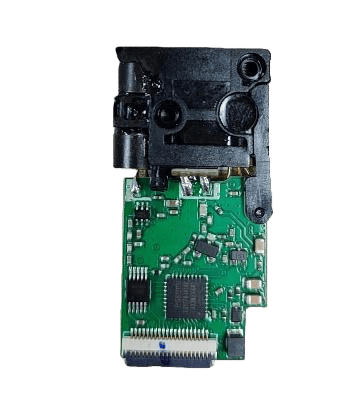

The L1 Movement is an ultra-compact, high-precision dual-emission laser ranging module, available with your choice of red or green laser. Covering 0.05m to 40m, it's designed for space-constrained applications in small robotics, industrial automation, and smart home devices.
WhatsApp: +43 67844091116
Tel: +86 18608017948 (WeChat)
E-mail: marketing@newtron-tech.com
The L1 Movement is a compact, high-precision dual-emission laser ranging module for industrial and commercial use. It covers 0.05m~40m (front-end reference) with ±3mm±100×10⁻⁶×D accuracy (<30m) and ±5mm±100×10⁻⁶×D (30-40m), tested on Kodak whiteboard with <500lux illumination.
Offering red (650nm±20nm, 0.5-1.5mW) or green (0.5-4.5mW) laser (customizable), it’s ultra-compact (40×20.4×7.2mm) with low power consumption (<70mA standby, <200mA peak @3.3V). Complies with Class2 safety standards, operating at 0~40℃.
Ideal for small robotics, industrial automation (precision positioning/defect detection), smart home devices, and portable measuring tools. A space-saving, reliable choice for global buyers seeking mini laser ranging solutions.
Product Description
Core Specifications
NTLR-RLDE-L1 |
Wavelength | 650nm±20nm |
Measuring Range | 0.05m~40m (front-end reference) |
Accuracy (at room temperature) | <30m: ±3mm±100×10⁻⁶×D (D = measurement distance in mm); 30m-40m: ±5mm±100×10⁻⁶×D (D = measurement distance in mm); Test condition: Kodak whiteboard, illumination <500lux |
Communication Interface | Serial Communication Protocol |
Baud Rate | 9600bps |
Supply Voltage (DC, V) | 3.3V±0.05V DC (ripple must be less than 20mV) |
Power Consumption(W) | Standby <70mA (laser on); Ranging peak: <200mA (@3.3V) |
Laser Emission Power（W） | Red light: 0.5mW-1.5mW; Green light: 0.5mW-4.5mW (both customizable on demand) |
Dimensions(mm) | Red light: 40(L)×20.4(W)×7.2(H)mm; Green light: Temporarily the same as red light, board length may increase |
Measurement Time | Typical value: 0.5s (tested on a white wall at 3m, illumination <500lux); Maximum value: 3.5s |
Temperature Drift (compared with its own normal temperature data) | (Place a target at 10m; when the module's ambient temperature is 25℃, the measured distance is D1; when the module's ambient temperature is any value between 0~40℃, the measured distance of the same target is D2; |D2-D1|≤5mm |
Operating Temperature | 0~40℃ |
Storage Temperature | -10~60℃ |
Interface Definition
Pin1→Pin2
Pin No. | Function | Pin No. | Function |
PIN1 | NC (No Connection) | PIN7 | GND |
|
PIN2 | 3.3V | PIN8 | NC (No Connection) |
|
PIN3 | 3.3V | PIN9 | TX |
|
PIN4 | 3.3V | PIN10 | RX |
|
PIN5 | GND | PIN11-PIN20 | NC (No Connection) |
|
PIN6 | GND |
|
|
|
Communication Protocol
Parameter | Specification |
Baud Rate | 9600 |
Data Bits | 8 bits |
Stop Bits | 1 bit |
Parity Bit | None |
Flow Control | None |
Turn on the Laser
Turn off the Laser
Measurement Command
rror Type | Error Code |
Weak Signal | <0E001> |
Over Range | <0E002> |
Strong Signal | <0E003> |
LD Error | <0E004> |
Strong Background Light | <0E005> |
Hardware Error | <0E006> |
Other Unknown Errors | <0E009> |

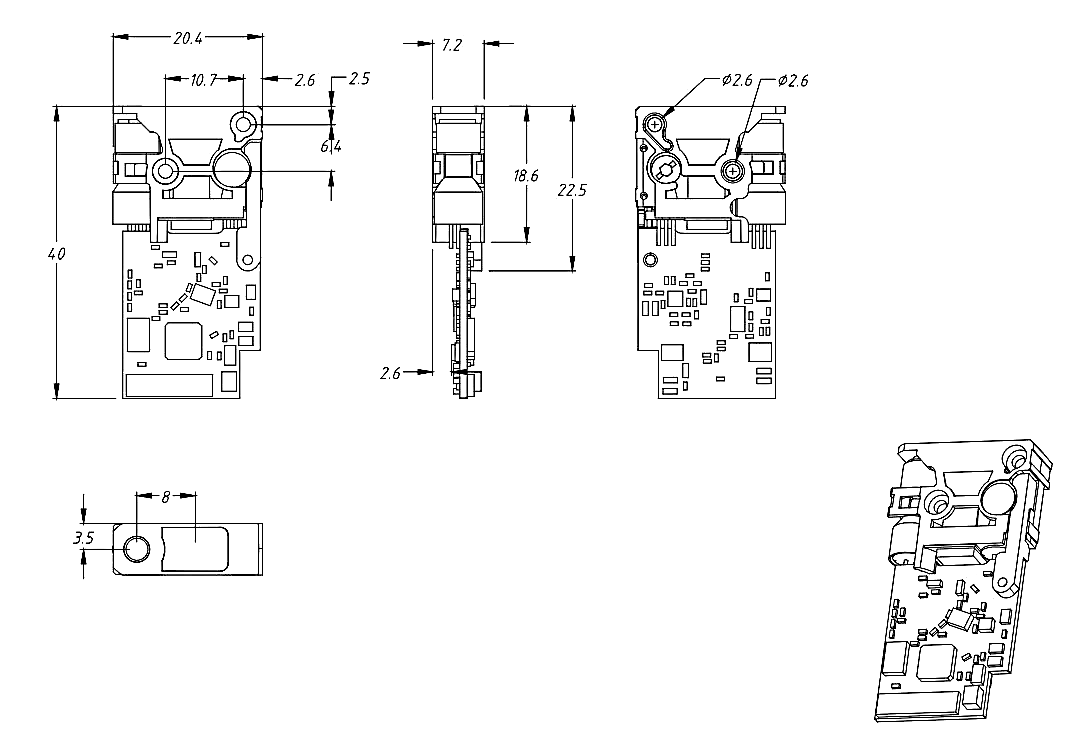

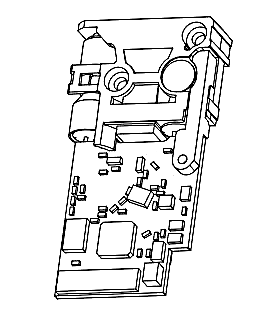

Structural Dimensions
