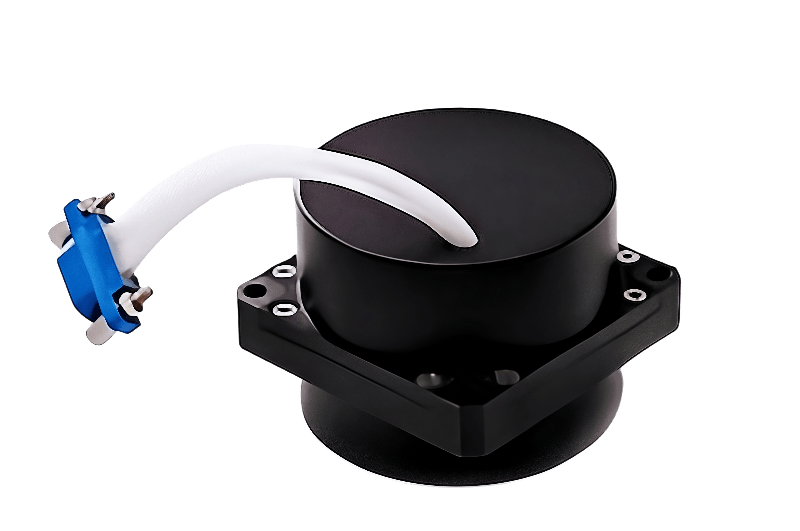

Product Model: NTFOG150A
Product Overview:A standardized, low-precision closed-loop fiber optic gyroscope designed for reliable angular velocity measurement. This device offers a compact form factor, lightweight construction, wide dynamic range, and high-speed data output, making it ideal for electro-optical gimbals, strapdown inertial systems, and stabilization platforms.
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Bias Stability ≤0.1°/h:Enables ICBM guidance (cumulative error <100m/10,000km)
- Nonlinearity ≤50 ppm:Critical for satellite optical payload stabilization
- -45°C~+65°C Operation:Certified for Arctic warfare systems (e.g., Svalbard deployments)
- 160g Weight:Reduces UAV payload by 40% vs. legacy FOGs
- Military-Grade Ruggedness
APPLICATION SCENARIOS
- Electro-Optical Gimbals
- Strapdown Inertial Navigation Systems (Sins)
- Inertial Measurement Units (Imus)
- Optical Platform Stabilization Devices
- Inertial Surveying Instruments To Measure Angular Velocity Along The Product's Sensitive Axis
PRIMARY FUNCTIONS
- Angular velocity measurement
- Attitude stabilization
- Navigation reference
- Harsh environments
SPECIFICATIONS
Table1: Basic Parameters
Performance Parameters | NTFOG150A |
Zero-Bias Stability | ≤0.2°/h(with 10-second averaging) |
Zero Bias Repeatability | ≤0.2°/h |
Random Walk Coefficient | <0.01°/√h |
Scale Factor Nonlinearity | ≤50ppm |
Scale Factor Repeatability | ≤50ppm |
Operating Temperature | -45°C ~ +65°C |
Dynamicrange | ≥±800°/s |
Input Voltage | +5V |
Steady State Power Consumption | ≤5W |
External Dimension | 50mmx50mmx37.5mm |
Weight | ≤145g |
Note: All performance parameters and interfaces are customizable to mission requirements.
