Home ⊙ UAV CAMERA ⊙ Lightweight Dual-Light Pod with Quick-Disconnect Mechanism

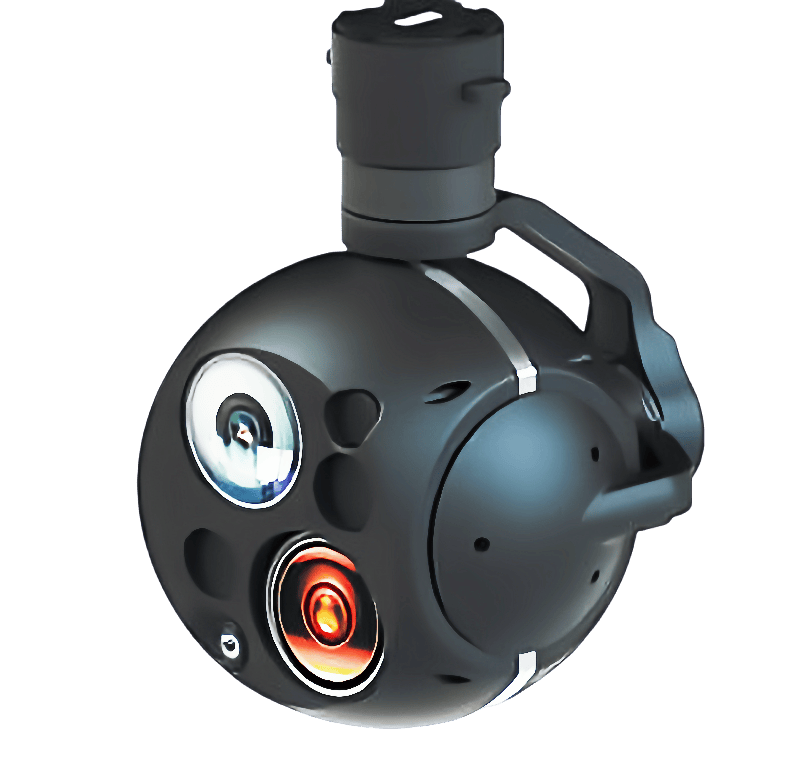

  • Lightweight Dual-Light Pod with Quick-Disconnect Mechanism
    ❤ Add to collection

  • Lightweight Dual-Light Pod with Quick-Disconnect Mechanism

    Product Model: NTEAGLE125C



    Product Overview:This lightweight dual-light pod combines a 30x optical zoom visible-light camera and a 640x512 thermal imager for versatile day/night operations. Featuring a fast quick-disconnect release mechanism, it is easily mounted on various UAVs for missions including reconnaissance, surveillance, and critical infrastructure inspection such as pipelines and power lines.






    WhatsApp: +43 67844091116

    TEL: +86 18608017948(WeChat)

    EMAIL: marketing@newtron-tech.com



    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Product Model: NTEAGLE125C



Product Overview:This lightweight dual-light pod combines a 30x optical zoom visible-light camera and a 640x512 thermal imager for versatile day/night operations. Featuring a fast quick-disconnect release mechanism, it is easily mounted on various UAVs for missions including reconnaissance, surveillance, and critical infrastructure inspection such as pipelines and power lines.






WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com



PRIMARY  FUNCTIONS


-  Complementary visible-light wide-angle lens and zoom mechanism

- 50mm telephoto infrared lens for extended detection range

- Comprehensive functionality: AI-powered smart tracking and recognition

- Quick-release mechanism for easy installation



SPECIFICATIONS



NTEAGLE125C Lightweight Dual-Light   Pod(Quick-Disconnect (QD) with Fast Release Mechanism)

Gimbal Technical Parameters

Voltage

DC12V-28V

Power Consumption

Avg ≤16W,Peak ≤30W

Weight

≤1100g

Gimbal Size

125mmx159mmx194mm

Protection Level

IP54/IP67

Control Interface

RS232

Video Output

Network

Operating Temp.

-20℃~+50℃

Storage Temp.

-40℃~+60℃

Maximum Angular Velocity

≥100°/s

Tracking angular velocity

≥40°/s

Stable accuracy

≤0.1mrad(1°/2Hz）(1σ)

Angular Position Accuracy

≤0.3°

Roll Angle

-50°~+50°

Pitch Angle

-110°~+110°

Yaw Angle

n×360°Unrestricted Rotation

30× optical zoom Visible Light
  Imaging

SENSOR Pixels

1920×1080@60fps

Optical Zoom Ratio

30× optical zoom

Focal Length

4.5～135mm

Visible Light Fixed-Focal-Length Imaging

Resolution and Frame Rate

1920×1080@60fps

Focal Length

2.8mm

Infrared Thermal Imaging

Resolution and Frame Rate

640×512@60fps

Focal Length

50mm

Field of view

8.7°×7°









Device Structure



UNIT:mm



Device Structure
