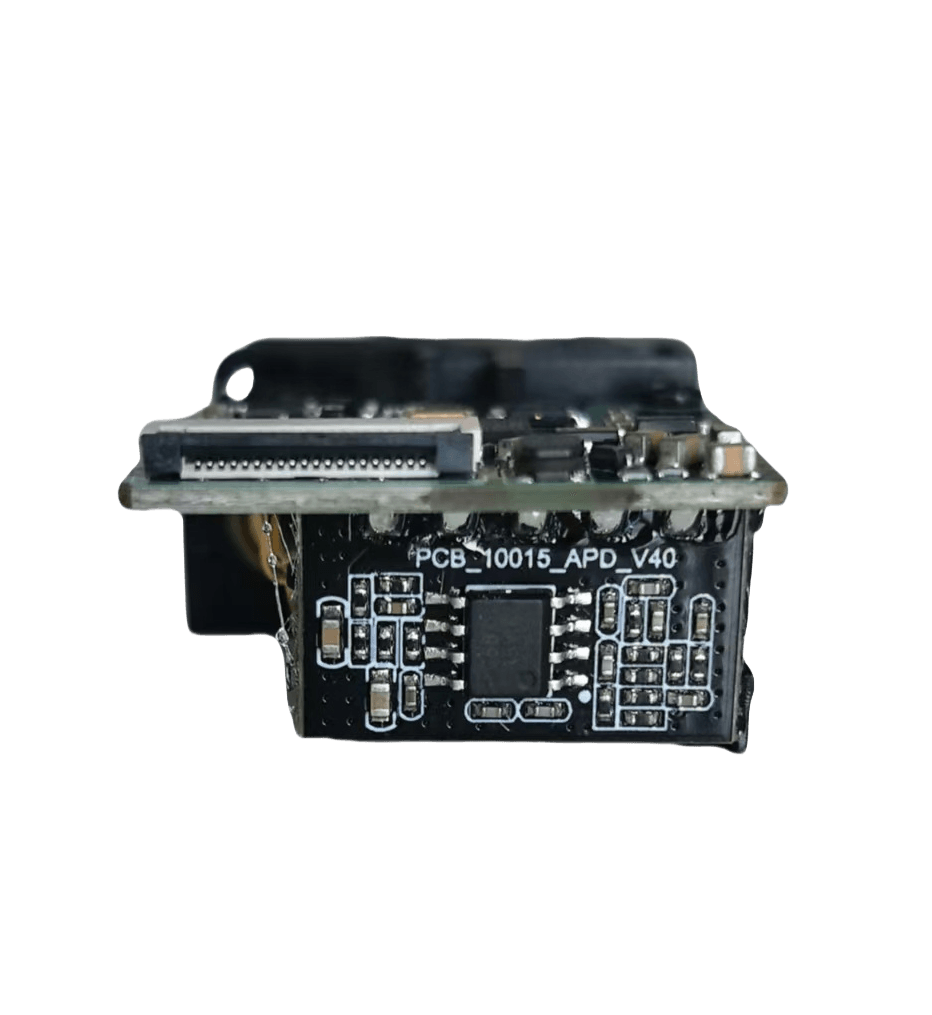

The NTLR-RLDE-E5 is a high-precision, compact red laser distance measurement module engineered for integration into a wide range of industrial and commercial applications. Leveraging advanced laser technology, it delivers fast, accurate, and reliable non-contact distance measurements.
Key Features & Benefits:
High Accuracy & Long Range: Achieves measurement accuracy of ±3mm±100ppm×D over a range of up to 100 meters, ensuring reliable performance for demanding tasks.
Fast Measurement Speed: Provides rapid results with a typical measurement time of 0.5 seconds, enhancing operational efficiency.

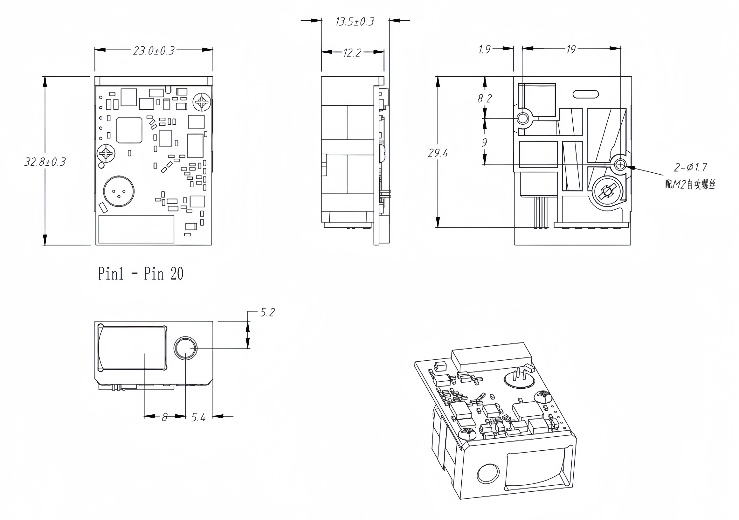

Compact & Robust Design: With dimensions of only 32.8(L)×23(W)×13.5(H) mm, its small form factor makes it ideal for integration into space-constrained devices.
Low Power Consumption: Consumes <70mA in standby and features a low peak current (<200mA), perfect for battery-powered portable equipment.
Class 2 Laser Safety: Compliant with international laser safety standards (IEC 60825-1), ensuring safe operation.
Simple Serial Interface: Communicates via a straightforward UART protocol (9600 bps), allowing for easy integration with microcontrollers and systems.
Stable Performance: Excellent temperature drift characteristics (≤5mm across 0°C to 40°C) guarantee consistent results in varying environments.
Typical Applications:
Industrial Rangefinders
Robotics & AGV Navigation
Unmanned Aerial Vehicles (UAVs)
Construction & Surveying Instruments
Security & Monitoring Systems
Smart Automation Equipment
