This model delivers enhanced performance with 80mJ of energy, pushing the effective ranging distance to 10,000 meters. It features a very tight beam divergence (≤0.25 mrad) and maintains elite stability, providing precise targeting for long-range engagements. Its design is optimized for applications where superior beam quality and extended reach are paramount.
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Integrated Transmit/Receive Common Aperture
- Non-thermally controlled instant operation with reduced power consumption
- All-in-one opto-mechanical design eliminates exposed electronics, ensuring EMI immunity
- Military-Grade Durability: Operates in temperatures from -40°C to +60°C and withstands altitudes up to 4,500m
- Structural stability withstands flight/vehicle vibration loads
- Service life >2 million cycles (<10% energy degradation)
- Vibration/Shock Proof: Meets GJB150A.16-2009 (MIL-STD-810H equivalent)
- Elite Stability：
①Dynamic Thermally-Stabilized Cavity: 0.03mrad optical axis stability (industry-leading)；
②Active Energy Control: ≤5% output fluctuation via closed-loop monitoring；
③Uniform Gaussian Beam: Zero fly spots for consistent target illumination
APPLICATION SCENARIOS
- Defense & Security: Target acquisition, artillery guidance, and reconnaissance.
- Training Simulators: Live-fire scenario emulation
- UAV Payloads: Lightweight guidance for loitering munitions
- Portable Kits: Special forces laser marking
- Vehicle Systems: Vibration-resistant mounting for tanks/APCs
PRIMARY FUNCTIONS
- Laser Ranging: Laser Range-finding with Live Data Transmission、APD Latch-up Protection、Range Gating
- Laser Designation: Laser irradiation with configurable internal/external sync encoding、Programmable laser emission delay、Synchronized laser signal output
- Self-Test: Built-in self-test、Laser pulse counting、Real-time device status monitoring、Multi-stage power protection
- Control: Serial Port Control (Receive and Respond to Host Bus Commands)、One-Key Reset Function、Self-Destruct Function via Encoding、Serial Port Online Firmware Upgrade Function
SPECIFICATIONS
Table1: Basic Parameters

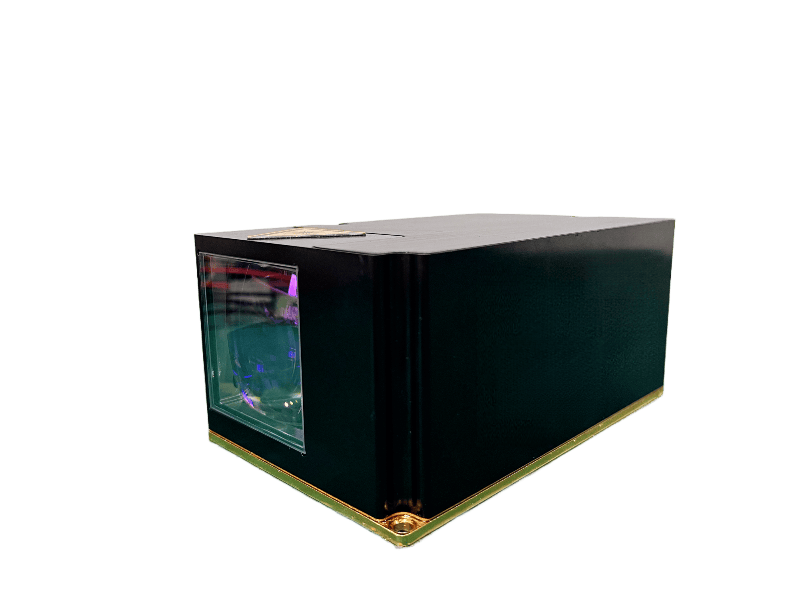

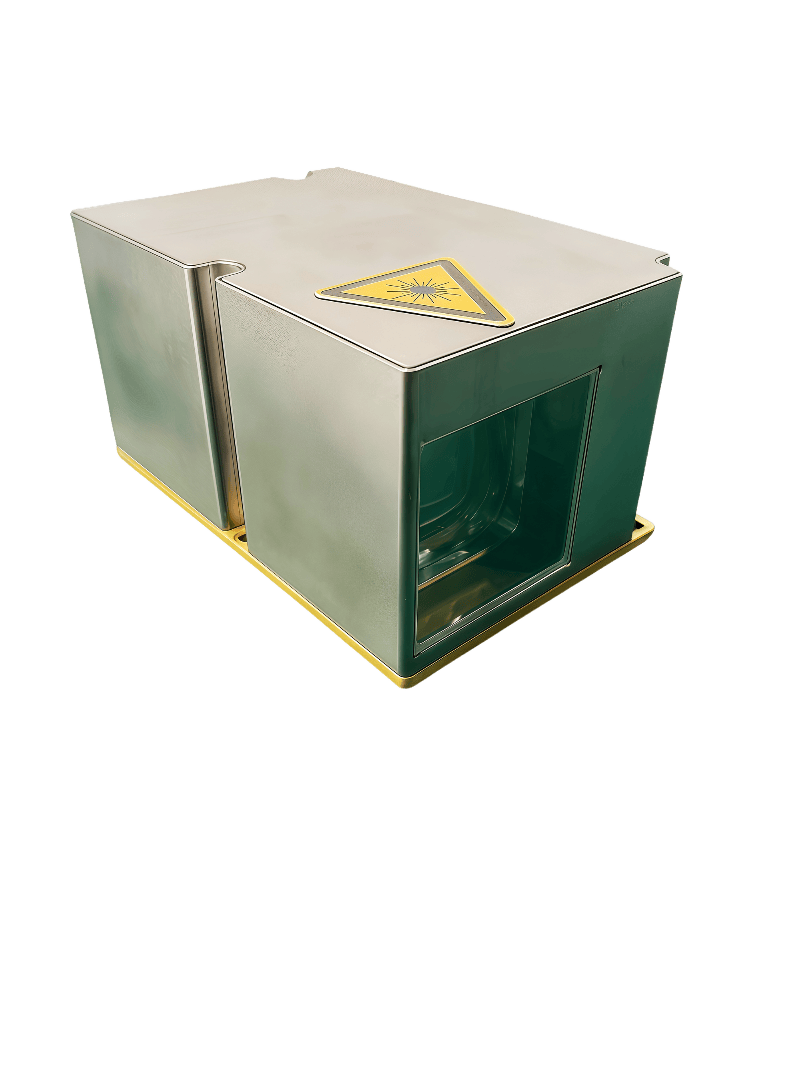

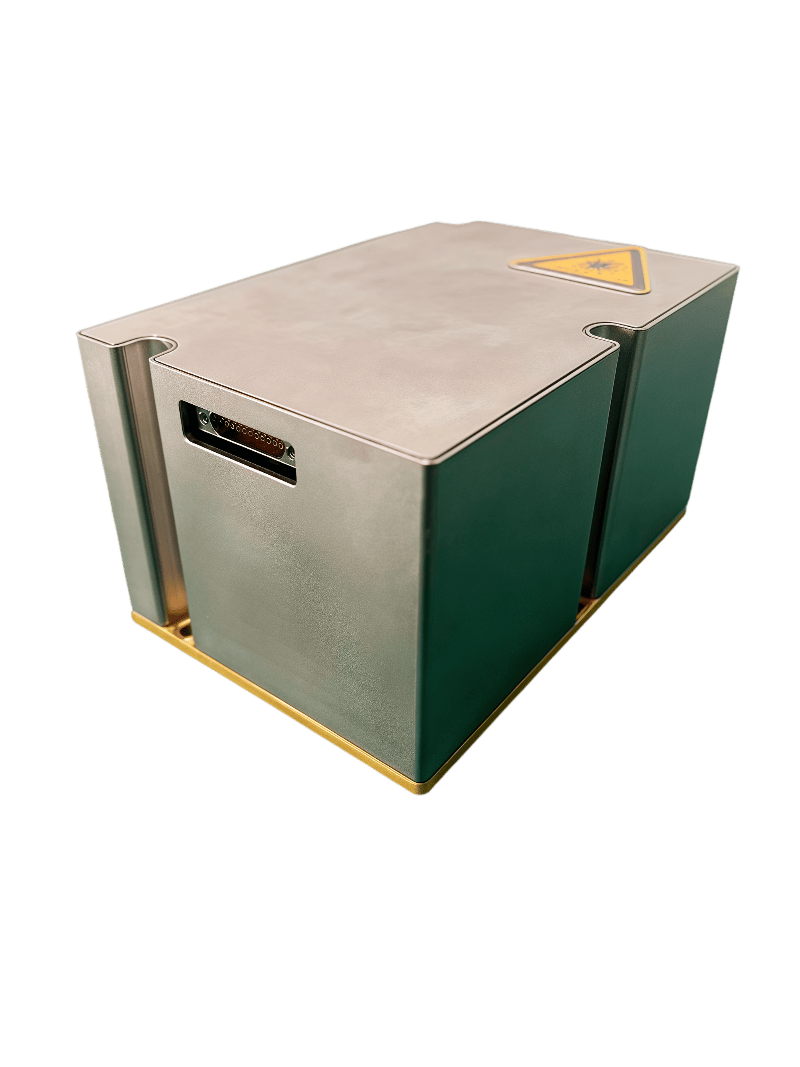

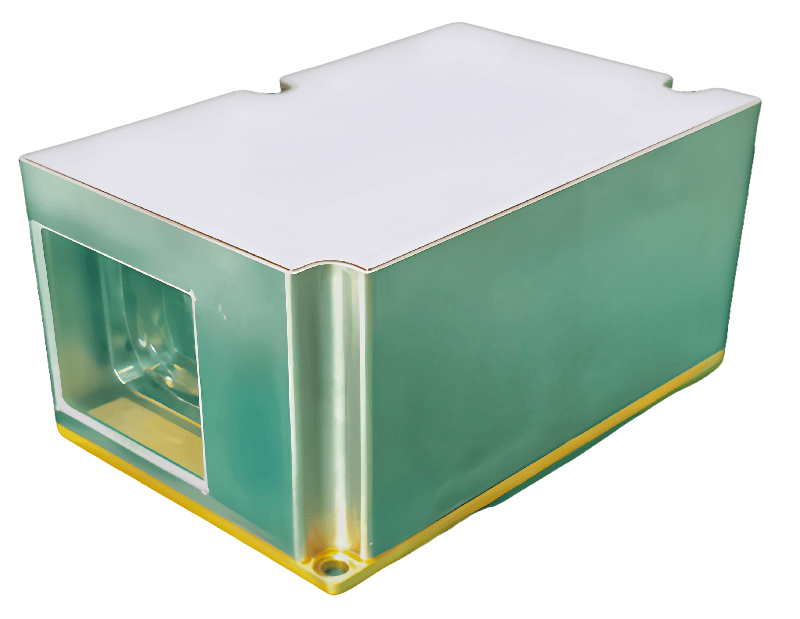

NTLTDNS8025 Laser Target Designator & Rangfinder
Non-Temperature-Controlled Common-Aperture Diode-Pumped Solid-State Laser Designator |
Aperture | Common Aperture |
Energy | 80mJ |
Wavelength | 1064±3nm |
Start-up Time | Plug-and-Play |
Pulse Width | 15 ± 5 ns |
Beam Divergence | ≤ 0.25mrad |
EnergyFuctuation Range | ≤ 5%，Active Energy Monitoring Closed-Loop Control Technology |
Ranging Range | ≥ 200m-10000m（10km visibility, target reflectivity greater than20%, for a 2.3m×2.3m target） |
Optical axis Stability | ≤ 0.03mradTechnology：Dynamic Thermally-Stabilized Cavity |
Ranging Accuracy | ±1m |
Measurement Accuracy | 98% |
Frequency | 1Hz/5Hz |
Continuous ranging duration | 5min（1Hz），2min（5Hz）
1Hz，≤5min，rest≥5min,
5Hz，≤2min，rest≥2min |
IrradiationtionFrequency (Base) | 20 Hz(Base) |
illumination range | ≥ 8000m |
Laser Illumination Coding Temporal Accuracy | ≤ 5 µs |
Size | 110mm×73mm×60mm |
Weight | ≤ 800 g |
Irradiation Duration | Single-Shot:Single cycle≥25s (interval: ≤15s, 8 cycles)
Rapid-Shot:Single cycle: ≥60s (interval: 60s, 2 cycles)
After 8 single cycles or 2 rapid cycles, the irradiation interval should be ≥30 minutes. |
PowerConsumption | Avg≤45W
Standby≤5W
Peak Current≤4A |
Electrical Interface | RS-422（Configurable RS232 & TTL Interfaces） |
Baud rate | 115200bps |
Power Supply | DC 28V(18V~32V operational) |
External Sync Signal | RS-422 Differential Signal Input |
Operating Temp | -40℃～＋60℃ |
Storage Temp | -55℃～+70℃ |
Maximum Altitude | 4500m |
Laser Coding | Pulse Repetition Frequency Coding
Variable Pulse Interval Code
Pseudonoise Code
1024 sets of fixed-frequency codes, 4 sets of 1024-bit pseudo-random codes, 4 sets of 1024-bit PCM codes |
Operational life | Long service life, exceeding 2 million cycles with less than 10% energy degradation. |
Self-Test Capability / BIT Function | Incorporates Built-In Test (BIT) measures with real-time fault detection functionality and self-test result reporting. |
Laser-Mounting Datum Parallelism | ≤ 0.6 mrad (Normal to Mounting Datum Surface) |
IP Rating (Ingress Protection) | IP54/IP67 |
NOTE: Weight, power consumption, and volume specifications correspond to maximum beam divergence. Customizable to requirements.
