Home ⊙ UAV CAMERA ⊙ Dual Visible Light Tactical Micro Pod with AI Tracking
  • Dual Visible Light Tactical Micro Pod with AI Tracking
    ❤ Add to collection

  • Dual Visible Light Tactical Micro Pod with AI Tracking

    Product Model: NTEAGLE80A

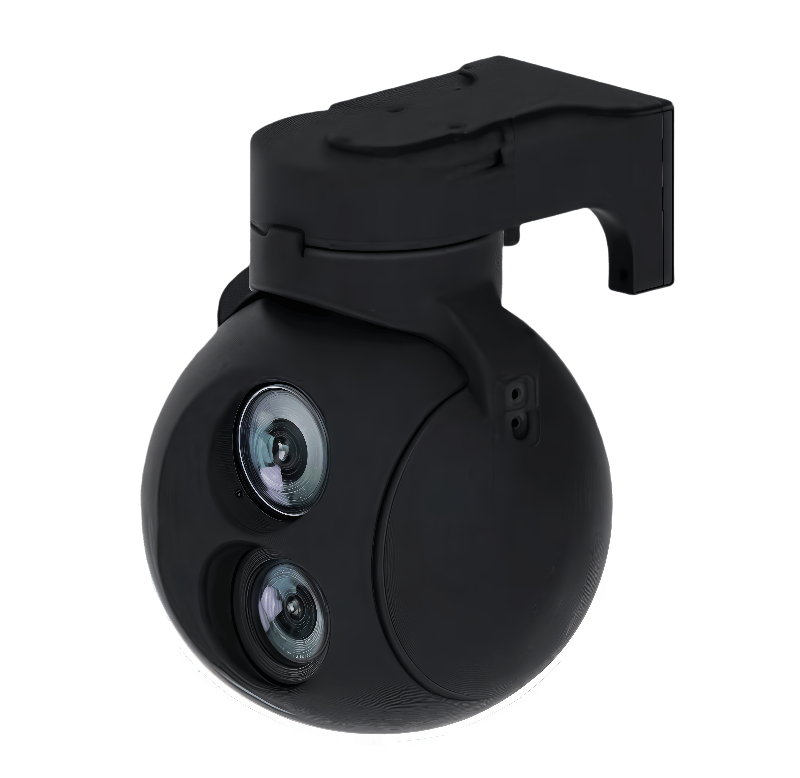

    Product Overview:Weighing approximately 240g, this tactical micro pod integrates dual fixed-focus visible-light cameras (WFOV & NFOV) for versatile situational awareness. Its robust dual-axis gimbal with EIS ensures stable imagery, while the embedded AI module enables real-time tracking of moving targets. Engineered for demanding tactical ISR, counter-terrorism, and inspection missions on lightweight UAVs.






    WhatsApp: +43 67844091116

    TEL: +86 18608017948(WeChat)

    EMAIL: marketing@newtron-tech.com



    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Product Model: NTEAGLE80A



Product Overview:Weighing approximately 240g, this tactical micro pod integrates dual fixed-focus visible-light cameras (WFOV & NFOV) for versatile situational awareness. Its robust dual-axis gimbal with EIS ensures stable imagery, while the embedded AI module enables real-time tracking of moving targets. Engineered for demanding tactical ISR, counter-terrorism, and inspection missions on lightweight UAVs.






WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com



PRIMARY  FUNCTIONS


-  Extremely Compact Structure & Lightweight(＜240g)

- With stands Launch Shock; Compatible With Catapult-Launched Uavs.

- Equipped with Servo-Assisted Image Stabilization.

- Wide Voltage Input (12–28V) & Dynamic Power Management

- Fully Shielded Metal Enclosure & EMC Compliance

- Built-In Tracking Capability



SPECIFICATIONS


NTEAGLE80A    Tactical-Grade Micro Pod

Voltage

DC12V-28V

Power Consumption

Avg ≤10W , Peak ≤20W

Gimbal

Pitch Angle

-100°～+40°

Yaw Angle

-110°～+110 °

Stable accuracy

0.1mrad(1°/2Hz）(1σ)

Maximum Angular acceleration

≥100°/s

Angular Position Accuracy

≤0.3 °

Visible Light Imaging

Wide Field of View (WFOV)

Resolution & Frame Rate

1920×1080@60fps

Focal Length

7.2mm

Field Angle (FOV)

42.2   ° ×24.5 °

Visible Light Imaging

Narrow Field of View (NFOV)

Resolution & Frame Rate

1920×1080@60fps

Focal Length

25mm

Field Angle (FOV)

12.71° ×7.1°

Video Output

Network

Control Interface

RS232

Work Condition

- 4 0℃～+ 6 0℃

Storage Condition

- 5 0℃～+ 7 0℃

Gimbal Size

63mm×76mm×83mm

Weight

≤240g

Launch Shock

≥400g

Tracking speed

≥40°/s











Device Structure



UNIT:mm



Device Structure
