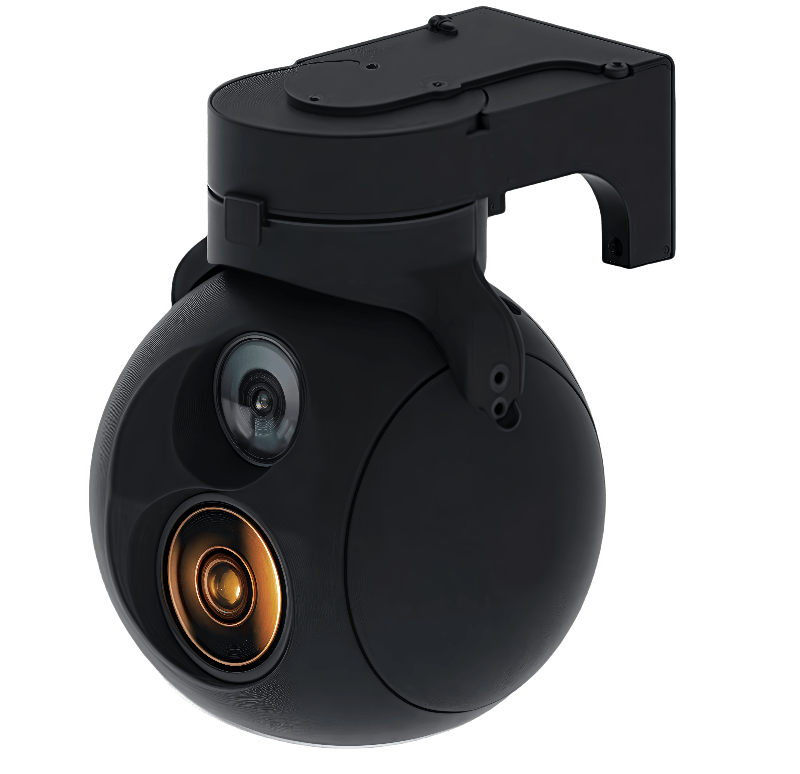

Product Model: NTEAGLE80
Product Overview:A rugged, tactical-grade micro pod integrating a visible-light camera and a 640x512 uncooled thermal imager. Weighing only ~280g, it combines dual-frame mechanical stabilization with EIS for high reliability. Designed to withstand high-G catapult launches, it performs real-time tracking of personnel and vehicles for reconnaissance and surveillance missions on lightweight UAVs.
WhatsApp: +43 67844091116
TEL: +86 18608017948(WeChat)
EMAIL: marketing@newtron-tech.com
PRIMARY FUNCTIONS
- Extremely Compact Structure & Lightweight(＜280g)
- Withstands high-G ejection forces, optimized for catapult-launched UAVs
- Dual-axis servo-stabilized gimbal for vibration/jitter cancellation
- Wide Voltage Input (12–28V) & Dynamic Power Management
- Fully Shielded Metal Enclosure & EMC Compliance
- Built-In Tracking Capability
SPECIFICATIONS
NTEAGLE80 Tactical-Grade Micro Pod |
Voltage | DC12V-28V |
Power Consumption | Avg ≤10W , Peak ≤20W |
Gimbal | Pitch Angle | -100°～ +40° |
Yaw Angle | -110°～+110 ° |
Stable accuracy | 0.1mrad(1°/2Hz）(1σ) |
Maximum Angular acceleration | ≥100°/s |
Angular Position Accuracy | ≤0.3 ° |
Visible Light Imaging | Resolution & Frame Rate | 1920×1080@60fps |
Focal Length | 8mm |
Field Angle (FOV) | 38.3 ° ×22.1 ° |
Thermal Imaging | Resolution& Frame Rate | 640×512@60fps |
Type | Uncooled infrared microbolometer camera |
Field Angle | 18mm Lens，FOV：24° ×18.1° |
Tracking speed | ≥40°/s |
Video Output | Network |
Control Interface | RS232 |
Work Condition | - 4 0℃～+ 6 0℃ |
Storage Condition | - 5 0℃～+ 7 0℃ |
Gimbal Size | 63×76×83mm |
Weight | ≤280g |
Launch Shock | ≥400g |
