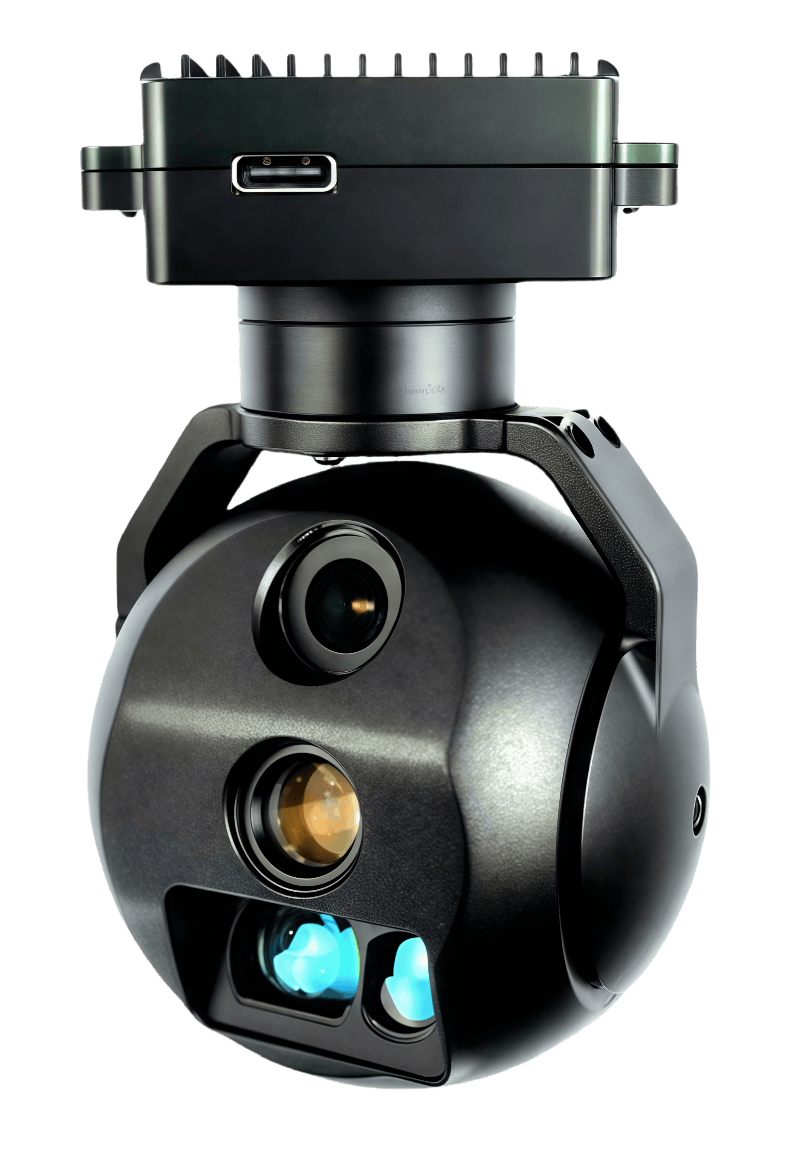

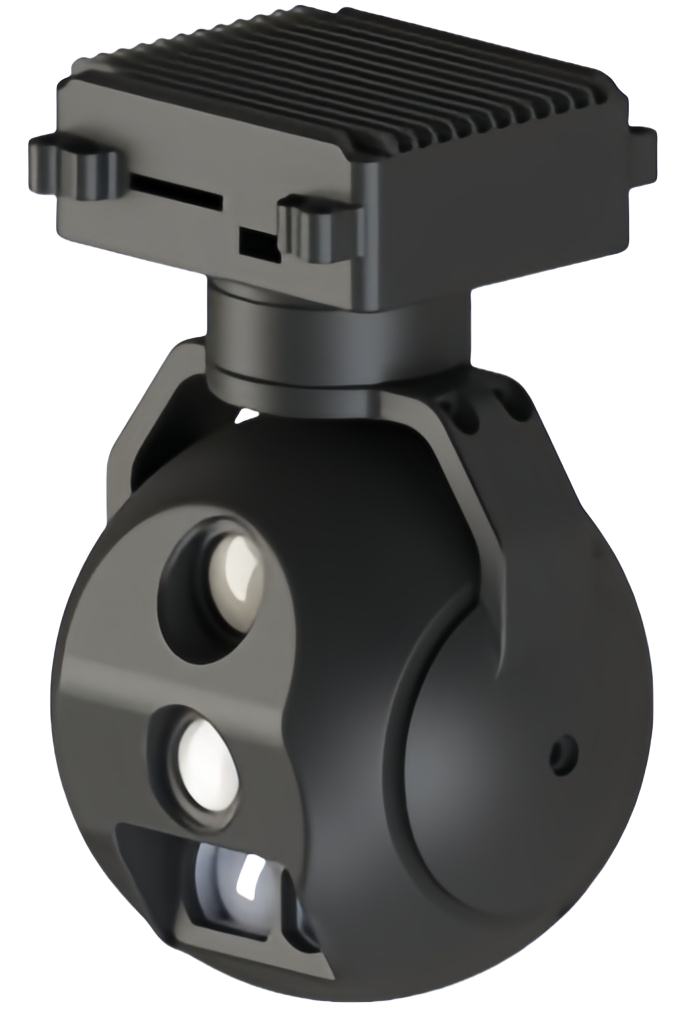

NTSKY492 Miniaturized EO/IR Fixed-Focus Camera: 1200m LRF + Dual Video Streams |
Voltage | DC12V-26.2V, the instantaneous voltage of the power supply must not exceed 27V |
Power Consumption | Dynamic: 6W |
Technical Parameters | Pitch Angle | -30°～ +100° |
Yaw Angle | -140°～ +140° |
Pitch and Roll Jitter Angle | ±0.02° |
Horizontal Jitter Angle | ±0.03° |
One-Click Restore | One-click restore to the initial position |
Adjustable Gimbal Speed | Adaptive Speed Control (Visible Light Camera) |
4K Camera | CMOS SENSOR | 8MP CMOS Sensor |
Digital Zoom | 9× digital zoom |
Storage | H264，H265, Local TF card 4K |
Field of Vision(FOV) | 25mm lens FOV： 10.5°× 7.8° |
1080P Camera | CMOS SENSOR | 2MP CMOS Sensor |
Digital Zoom | 9× digital zoom |
Storage | H264，H265, Local TF card 1080P |
Field of Vision(FOV) | 6mm lens FOV：60°× 43° |
HDMI Video | Micro-D HDMI 1080P 60fps |
Laser Ranging | Wavelength | 905nm (class 1 laser) |
Target Detection Range | 5～1200m |
Accuracy | ±1m |
Target recognition and tracking | Min tracking target size | 16×16 pixels |
Max tracking target size | 256×256 pixels |
Maximum Allowable Occlusion Time | 2 seconds |
Tracking speed | 50 Pixel/Frame max |
Simultaneous detection qty | 100 targets max |
Recognized categories | Human and Vehicle |
Min detection target size | 32×32 pixels |
Storage Capacity | 128G TF card; class6 and above; |
Network Output Mode | 1080P 30fps /4K 30fps |
Control mode | IP, UART,SBUS (PWM optional) |
Control Interface | TTL |
Gimbal Size | 72mm×72mm×105mm |
Working Condition | -10℃ to +45℃ / 20% to 80% RH |
Storage Environment | -20℃ to +60℃ / 20% to 95% RH |
Weight | 220±10g |
