Home ⊙ UAV CAMERA ⊙ Ultra-Micro Dual-Visible Gimbal Pod with AI Tracking
  • Ultra-Micro Dual-Visible Gimbal Pod with AI Tracking
    ❤ Add to collection

  • Ultra-Micro Dual-Visible Gimbal Pod with AI Tracking

    Product Model: NTEAGLE40A

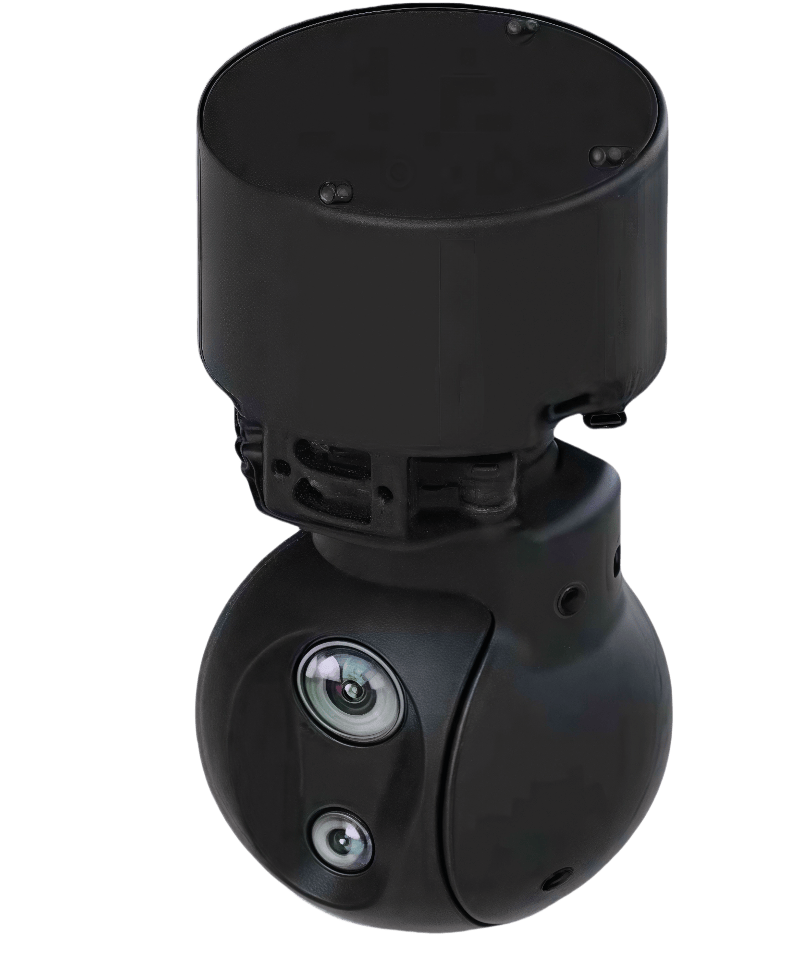

    Product Overview:This ultra-compact, sub-80g dual-visible-light gimbal pod features dual-axis stabilization for full top-down observation. Its narrow-FOV camera captures clear details like faces and license plates from 100m altitude. With built-in AI multi-target tracking for humans and vehicles, it's the ideal lightweight payload for mini-UAVs requiring real-time situational awareness.






    WhatsApp: +43 67844091116

    TEL: +86 18608017948(WeChat)

    EMAIL: marketing@newtron-tech.com


    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Product Model: NTEAGLE40A



Product Overview:This ultra-compact, sub-80g dual-visible-light gimbal pod features dual-axis stabilization for full top-down observation. Its narrow-FOV camera captures clear details like faces and license plates from 100m altitude. With built-in AI multi-target tracking for humans and vehicles, it's the ideal lightweight payload for mini-UAVs requiring real-time situational awareness.






WhatsApp: +43 67844091116

TEL: +86 18608017948(WeChat)

EMAIL: marketing@newtron-tech.com


PRIMARY  FUNCTIONS


-  Ultra-compact Structure: <80g weight

-  Servo-Driven Image Stabilization

- Onboard Tracking/Recognition Capabilities

- Wide-range 12-16V Input With Dynamic Power Management

- Full Metal-Housed Encapsulation, Emc-Compliant Design



SPECIFICATIONS



NTEAGLE40A   Micro Pod

Voltage

DC12V-16V

Power Consumption

Avg ≤5W , Peak ≤8W

Gimbal

Pitch Angle

-90° ～+30°

Yaw Angle

-110°～+110 °

Stable accuracy

0.2mrad(1°/2Hz）(1σ)

Maximum Angular acceleration

≥30°/s

Angular Position Accuracy

≤0.3 °

Visible Light Imaging

Wide Field of View (WFOV)

Resolution & Frame Rate

1920×1080@30fps

Focal Length

2.4mm

Field Angle (FOV)

98.5°×66.3°

Visible Light Imaging

Narrow Field of View (NFOV)

Resolution& Frame Rate

1920×1080@30fps

Focal Length

10.36mm

Field Angle (FOV)

30°×17.1°

Video Output

Ethernet（RTSP）

Control Interface

TTL

Work Condition

- 20℃～+ 6 0℃

Storage Condition

- 40℃～+ 6 0℃

Gimbal Size

Φ40×82mm

Weight

≤80g

Tracking Speed

32   px/frame (Person: 32×32 pixels)

48   px/frame (Vehicle: 64×64 pixels)





Device Structure



UNIT:mm


Device Structure
