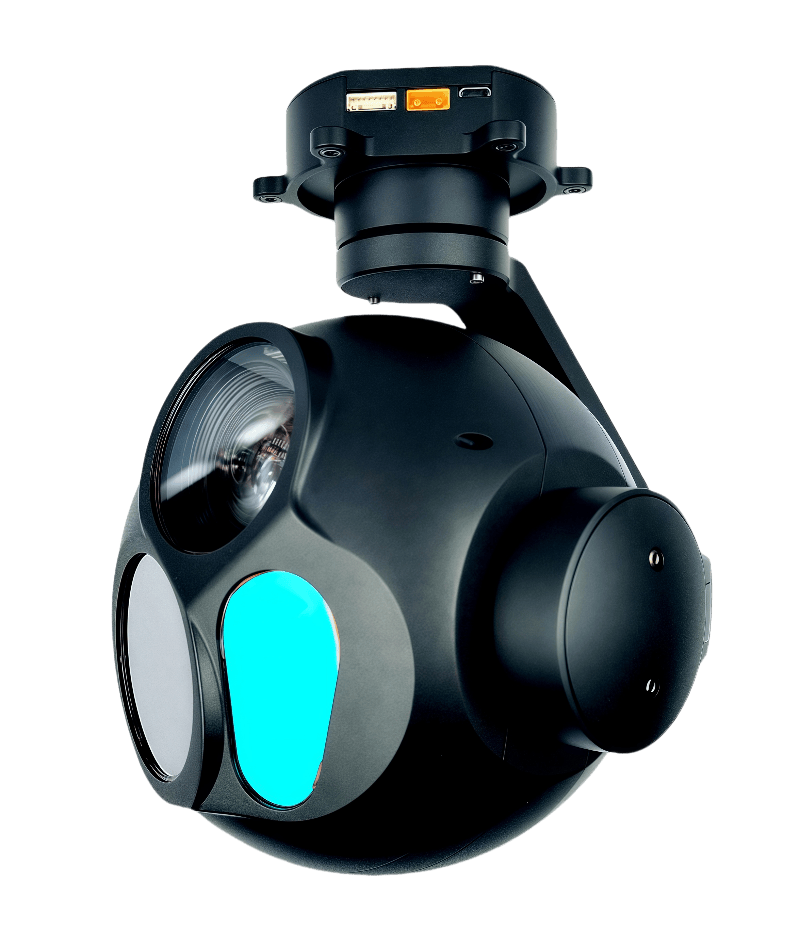

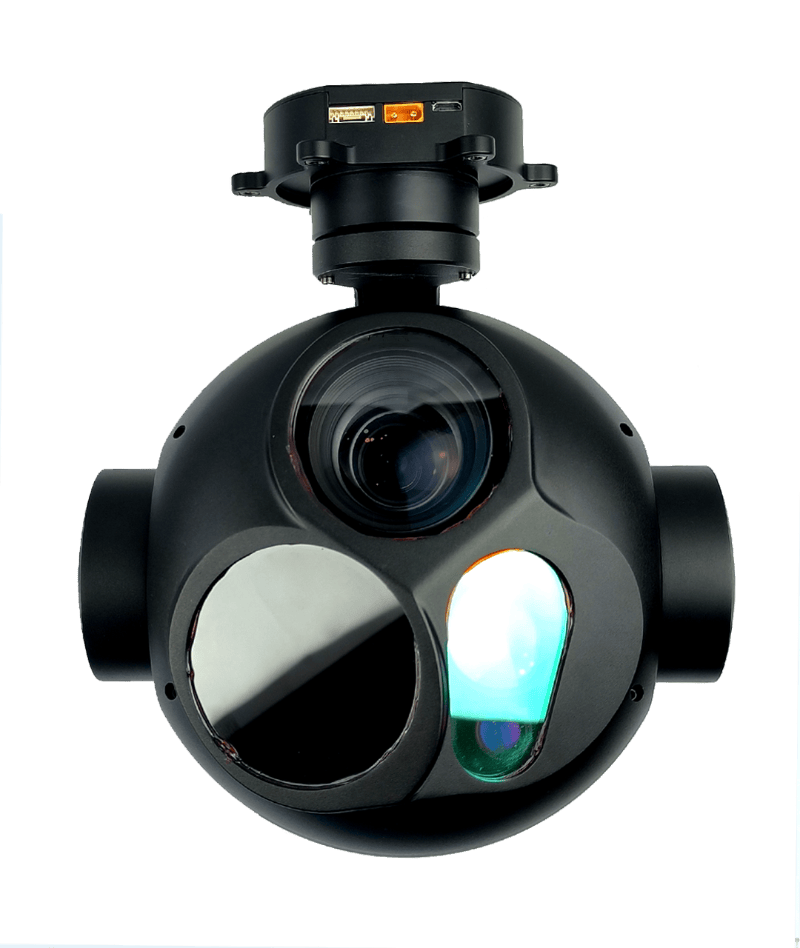

NTSKY305 3 Light Gimbal Camera |
Voltage | DC12V-26.2V |
Power Consumption | Dynamic 10W |
Gimbal | Roll Angle | -45°～ +45° |
Pitch Angle | -30°～ +120° |
Pitch and Roll Jitter Angle | ±0.02° |
Horizontal Jitter Angle | ±0.03° |
Yaw Angle | 360 Degree continuous rotation |
Control method | SBUS、 PWM Signal Control(Decoder board) 、UART、 IP network or TTL serial |
Visible Light Camera | SENSOR | 2MP pixels |
Optical Zoom | 30× Optical Zoom, f=4.5～135 mm ±5% |
Focusing Time | Real time fast focusing, focusing time < 1s |
Video Output | IP/HDMI output; RTSP 1080P video stream, Local TF 1080P recording |
Field Angle (FOV) | D : WIDE 67.8º±5% TELE 2.77º±5%
H : WIDE 59.8º±5% TELE 2.34º±5%
V : WIDE 40.5º±5% TELE 1.48º±5% |
Zoom Mode | electric zoom and continuously adjustable |
Image And Video Storage Format | Image: jpeg format:multipixel can be choosed Video：H264 format；1080P30FPS |
Laser Range | Laser wave | 1535±10nm (Safety Classification Class 1) |
Detect range | 50--5000m(Do not use the camera to shoot the on bject on less than 50m distance) |
Accuracy / Resolution | Accuracy±1m; Ranging resolution ≤ 40m |
Thermal imaging | Resolution | 640×512 pixel |
Pixel spacing | 12μm |
Type | Uncooled infrared microbolometer camera |
Wavelength range | 8～14μm |
Thermal sensitivity (NETD) | ≤50mk@F1.0 |
Field Angle | 35mm Lens，FOV：12.52°×10.03° |
Temp. Measurement Range | -20°C~ 150°C, extendable to 100°C~550°C |
Temp. Measurement Accuracy | ±3°C or ±3% (whichever is greater) |
Measurement | Supports global temperature measurement; optional full-pixel temperature save function. |
Target recognition and tracking | Min tracking target size | 16×16 pixels |
Max tracking target size | 256×256 pixels |
Maximum Allowable Occlusion Time | 2 seconds |
Tracking speed | 50 Pixel/Frame max |
Simultaneous detection qty | 100 targets max |
Recognized categories | Human and Vehicle |
Min detection target size | 32×32 pixels |
Image Processing Function | Image Display | Black heat, white heat, pseudo color (≥8 kinds) |
Non-uniformity correction NUC. |
Adaptive dynamic range compression AGC |
EE enhance |
Image Output Interface | RTSP 1080P30FPS Picture in picture output |
Control Interface | TTL |
Protection Level | IP54 / IP67 |
Baud Rate | 115200 |
Storage capacity | 32-256GB TF card (microSD), Class 10 or above, FAT32 format. |
Work Condition | -10℃ to +55℃ / 20% to 80% RH |
Storage Condition | -20℃ to +60℃ / 20% to 95% RH |
Gimbal Size | W165mm×D169mm×H195mm |
Weight | 1580±20g |
