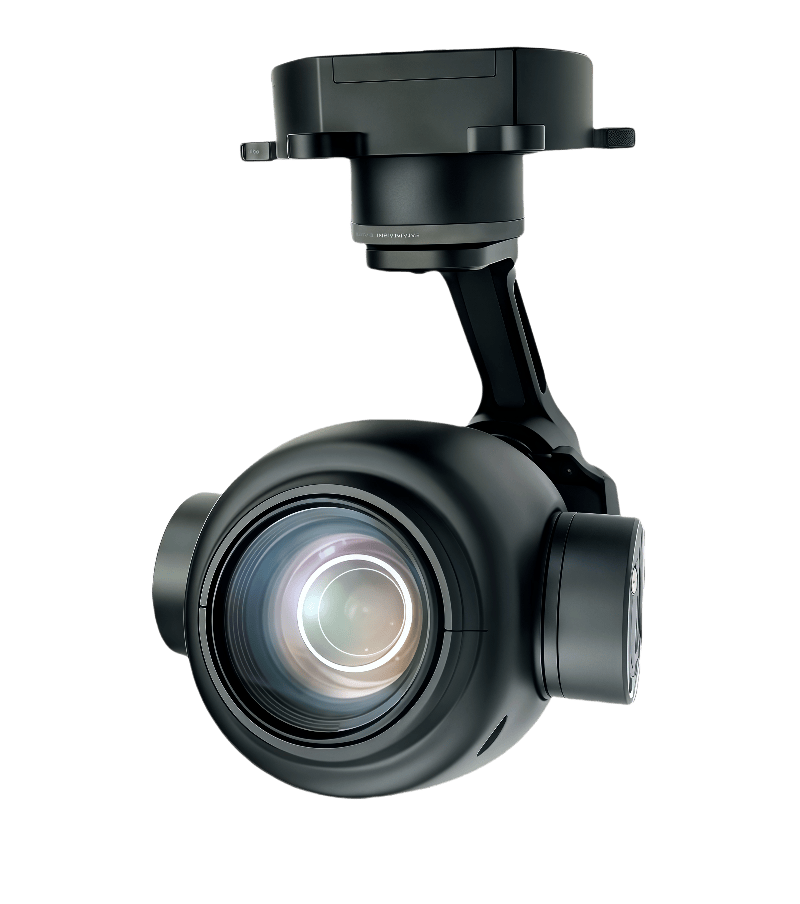

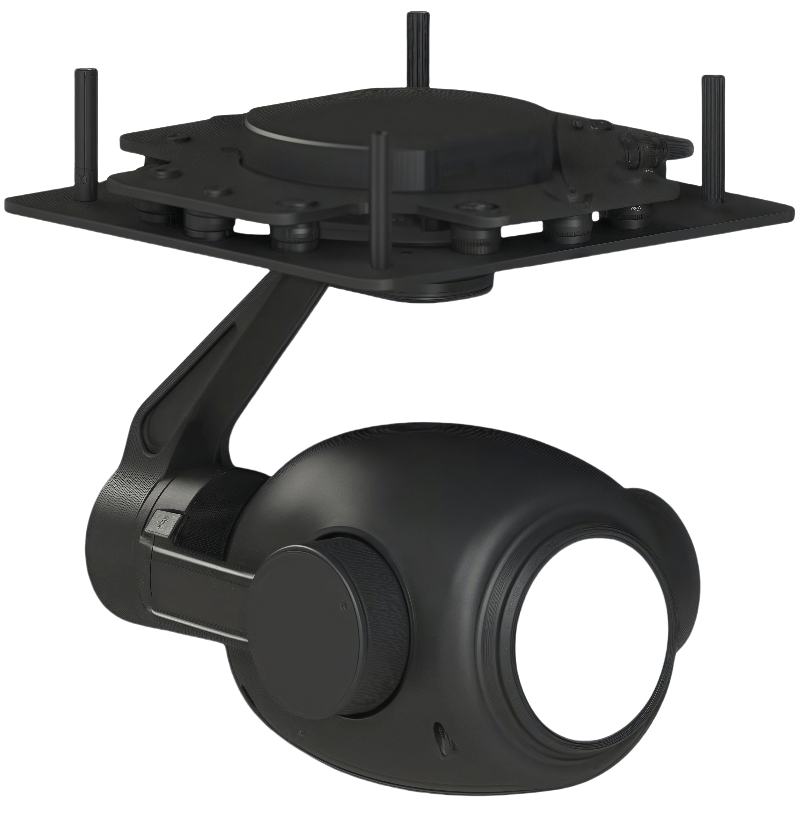

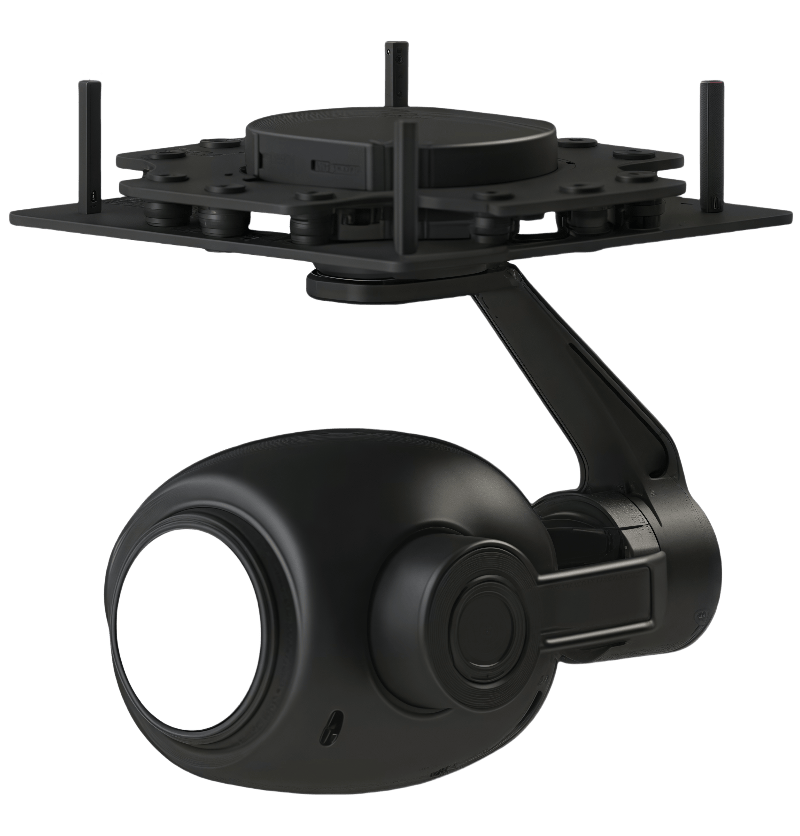

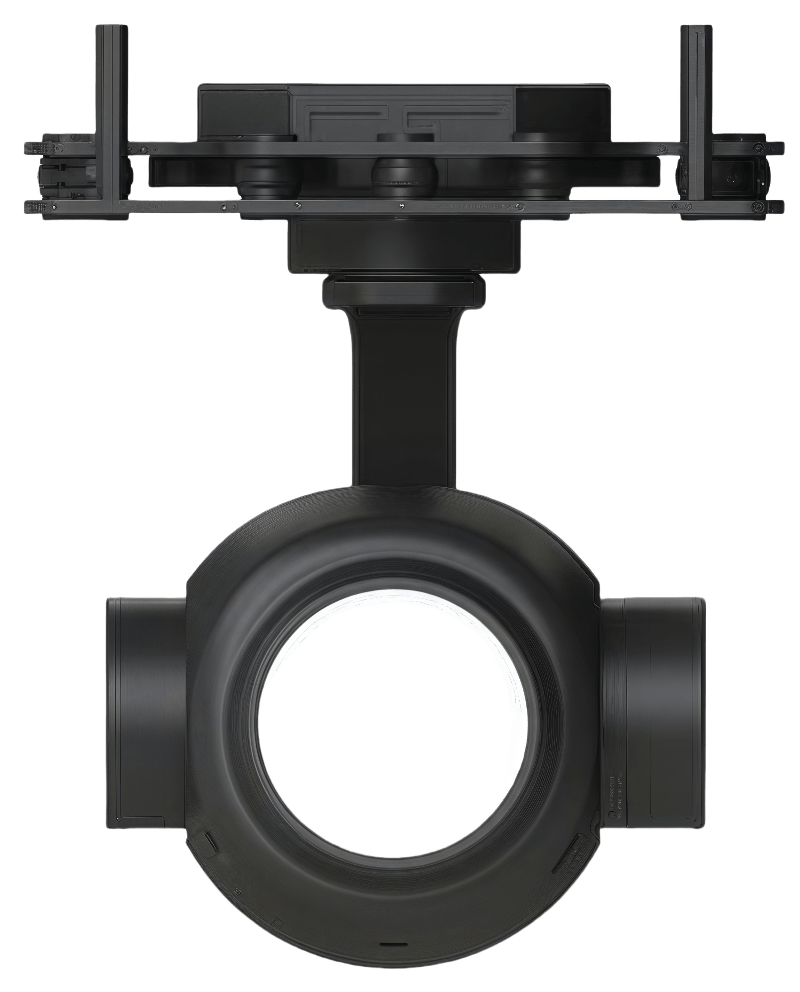

NTSKY304 30×Optical Zoom & 3-Axis Stabilization 4K Networked Camera |
Voltage | DC12V-26.2V |
Power Consumption | Dynamic:6W |
Technical Parameters | Roll Angle | -45°～ +45° |
Pitch Angle | -45°～ +100° |
Yaw Angle | 360°continuous rotation |
Pitch and Roll Jitter Angle | ±0.02° |
Horizontal Jitter Angle | ±0.03° |
One-Click Restore | One-click restore to the initial position |
Adjustable Gimbal Speed | Adaptive Speed Control (Visible Light Camera) |
Visible Light Camera | SENSOR | 1/2.8 Inch 8M Pixels CMOS SENSOR |
Zoom | 30× HD optical zoom lens, f=4.5±10%～135±10%mm |
Focus | Focus in real time, ＜1 s |
Video Output | RTSP Stream, IP Output: 4K,1080P Video |
Field of Vision(FOV) | D : WIDE 67.8º±5% TELE 2.77º±5% H : WIDE 59.8º±5% TELE 2.34º±5% V : WIDE 40.5º±5% TELE 1.48º±5% |
Video mode | 4K 30fps/1080P 30fps |
Target recognition and tracking | Min tracking target size | 16×16 pixels |
Max tracking target size | 256×256 pixels |
Maximum Allowable Occlusion Time | 2 seconds |
Tracking speed | 50 Pixel/Frame max |
Simultaneous detection qty | 100 targets max |
Recognized categories | Human and Vehicle |
Min detection target size | 16×16 pixels |
Storage Capacity | 128G TF card; class6 and above; |
Ground Control Station (GCS) Software | Windows & Android Ground Control Station |
Video Storage Format | Local TF Card Storage,H264 4K/1080P,Video Streams |
Control mode | IP, Uart |
Control Interface | TTL |
Gimbal Size | 140mm×162mm×144mm |
Working Condition | -10℃ to +55℃ / 20% to 80% RH |
Storage Environment | -20℃ to +60℃ / 20% to 95% RH |
Weight | 710±10g |
