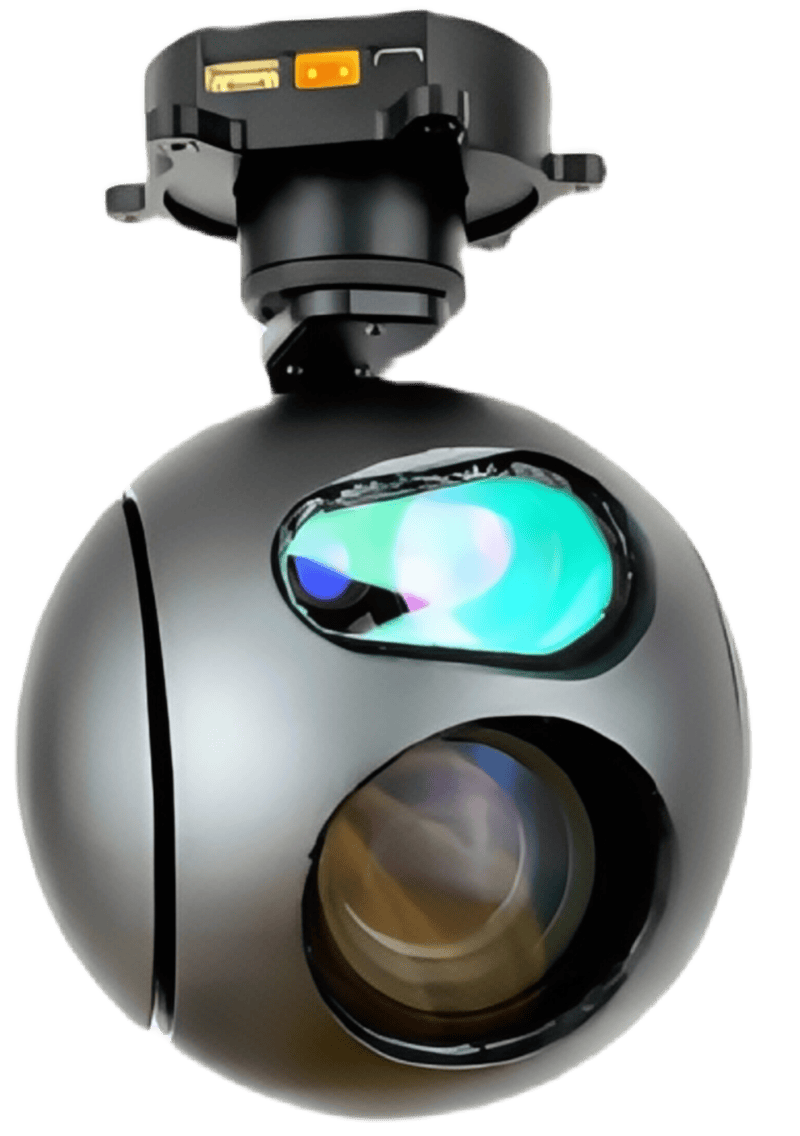

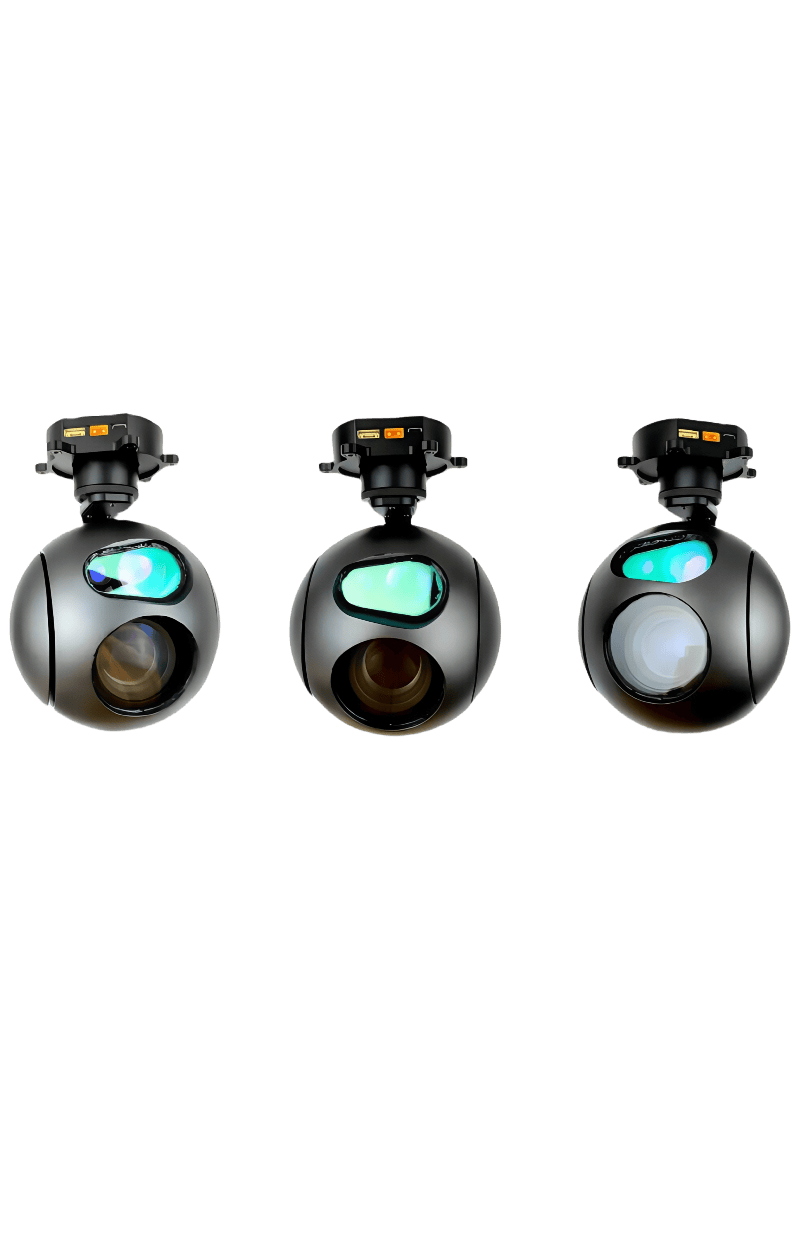

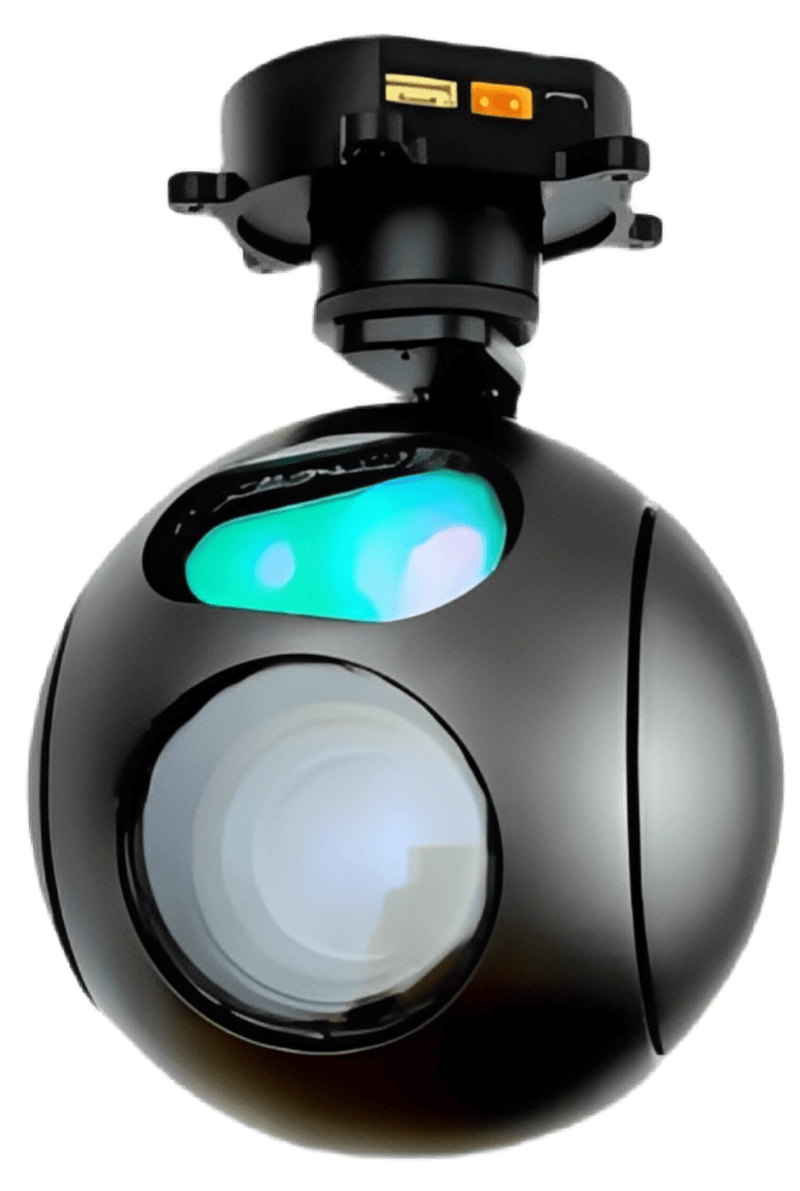

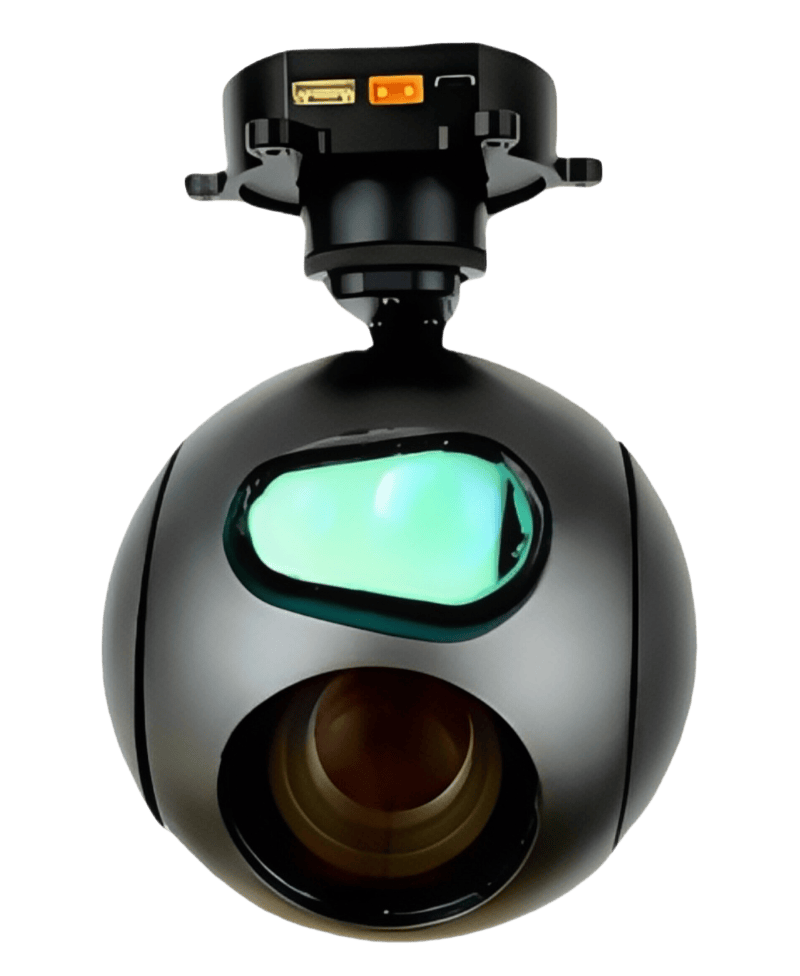

NTSKY303A 30× EO+ 3000m Laser Rangefinder Gimbal Camera |
Voltage | DC12V-26.2V, the instantaneous voltage of the power supply must not exceed 27V |
Power Consumption | Standby :8W |
Technical Parameters | Roll Angle | -45°～ +45° |
Pitch Angle | -45°～ +120° |
Yaw Angle | 360°continuous rotation |
Pitch and Roll Jitter Angle | ±0.02° |
Horizontal Jitter Angle | ±0.03° |
Gimbal Mode | One-click centering, with Point Lock / Follow Modes |
Adjustable Gimbal Speed | Adaptive Speed Control (Visible Light Camera) |
Visible Light Camera | SENSOR | 1/2.8-inch 2MP Wide Dynamic Range CMOS SENSOR |
Zoom | 30× HD optical zoom lens, f=4.5±10%～135±5%mm |
Focus | Focus in real time, ＜1 s |
Video Output | Ethernet (RTSP) output, 4K,1080p; Local TF card ,1080p recording |
Field of Vision(FOV) | D : WIDE 67.8º±5% TELE 2.77º±5% H : WIDE 59.8º±5% TELE 2.34º±5% V : WIDE 40.5º±5% TELE 1.48º±5% |
Video mode | 1080P 30fps |
Laser Ranging | Wavelength | 1535nm±5nm (class 1 laser) |
Target Detection Range | 20～3000m，Objects shall not be irradiated at distances closer than 20 meters. |
Accuracy | Acc. ≤±2m, Ranging Resolution ≤ 20 m |
Control mode | Speed adaptive control External control via network/Serial port |
Control Interface | TTL |
Gimbal Size | 174mm×162mm×162mm |
Working Condition | -20℃ to +55℃ / 20% to 80% RH |
Storage Environment | -30℃ to +60℃ / 20% to 95% RH |
Weight | 880±10g |
