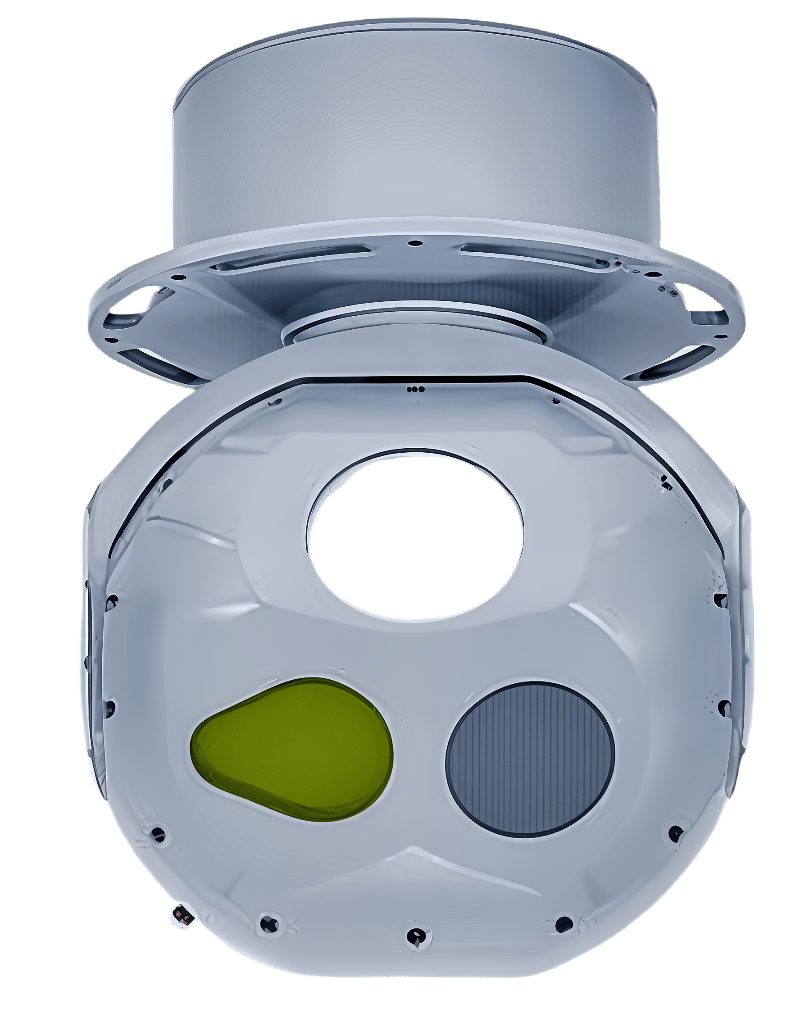

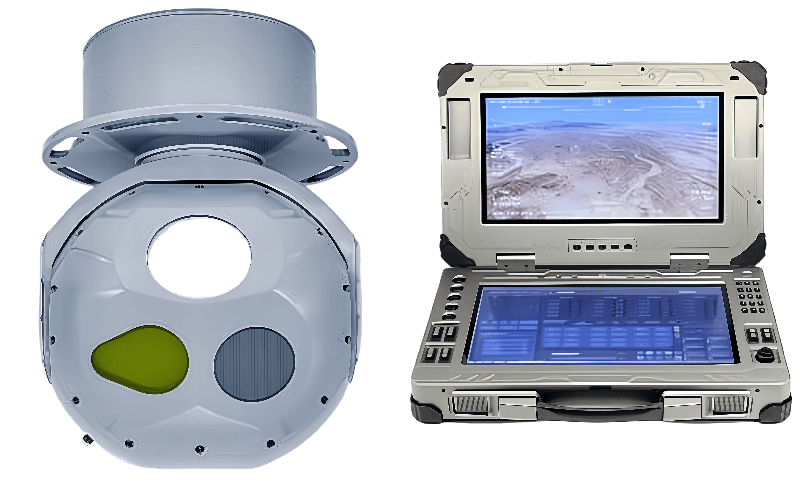

NTEAGLE280A Electro-Optical Pod |
Voltage | 28VDC |
Power Consumption | Avg ≤200W,Peak ≤300W |
Gimbal | Pitch Angle | -110°～ +20° |
Yaw Angle | 360°continuous rotation |
Stable accuracy | ≤35μrad（RMS） |
Angular Measurement Accuracy | ≤1mrad |
Tracking accuracy | ≤0.1mrad（RMS） |
Maximum search angular velocity | ≥60°/s |
Maximum tracking angular velocity | ≥10°/s |
Recording Duration | ≥5 h |
External Interfaces | Video Interfaces:1 channel network digital video output,1 channel HD-SDI video output,1 channel RS422 serial port Communication Interfaces: Dual Asynchronous RS-422 Serial Ports |
Control method | Unibody Electro-Optical Turret with Lifting Mechanism |
Visible Light Television | CMOS | Optical Continuous Zoom,Auto-focus,Real-time Digital Image Enhancement |
Resolution & Frame Rate | 1920×1080@60fps |
Wavelength | 0.4µm～0.7µm |
Field Angle (FOV) | 2°×1.12°～52.5°×29.4° |
Zoom Mode | Automatic, One-touch Autofocus, Manual |
Range coverage (Operational Conditions: - Minimum Visibility:≥23 km - Maximum Relative Humidity:≤70% - Detection/Tracking Target Size:4m×6m ） | Detection Range:≥ 9km; Identification Range:≥5km |
Thermal Imaging | Features | Optical continuous zoom, autofocus, polarity reversal, non-uniformity correction (NUC), and image enhancement. |
Detector | Cryogenically Cooled Mid-Wave HgCdTe (MCT) 640×512 Staring Focal Plane Array |
Resolution& Frame Rate | 640×512@60fps |
Wavelength | 3μm ～5μm |
Type | MWIR |
Field Angle | 2.2°×1.76°～22°×17.6° |
F | 4 |
Detection Range | ≥8km （Visibility:≥23 km - Relative Humidity:≤70% - Target-Background Temperature Difference:5K (∆T) - Target Size: 4m×6m） |
Recognition Range | ≥5km （Visibility:≥23 km - Relative Humidity:≤70% - Target-Background Temperature Difference:5K (∆T) - Target Size: 4m×6m） |
Laser Rangefinder Module Parameters | Target Detection Range | 50m～10000m |
Min Range | 50m |
Wavelength | ≥1535±5nm |
Accuracy | ≤2m |
Pulse Rate | Single-shot，1Hz，5Hz |
Protection Level | IP54/IP67 |
Work Condition | - 4 0℃～+60℃ |
Storage Condition | - 5 0℃～+70℃ |
Gimbal Size | φ280mm×405.5mm |
Weight | Pod: ≤16 kg |
