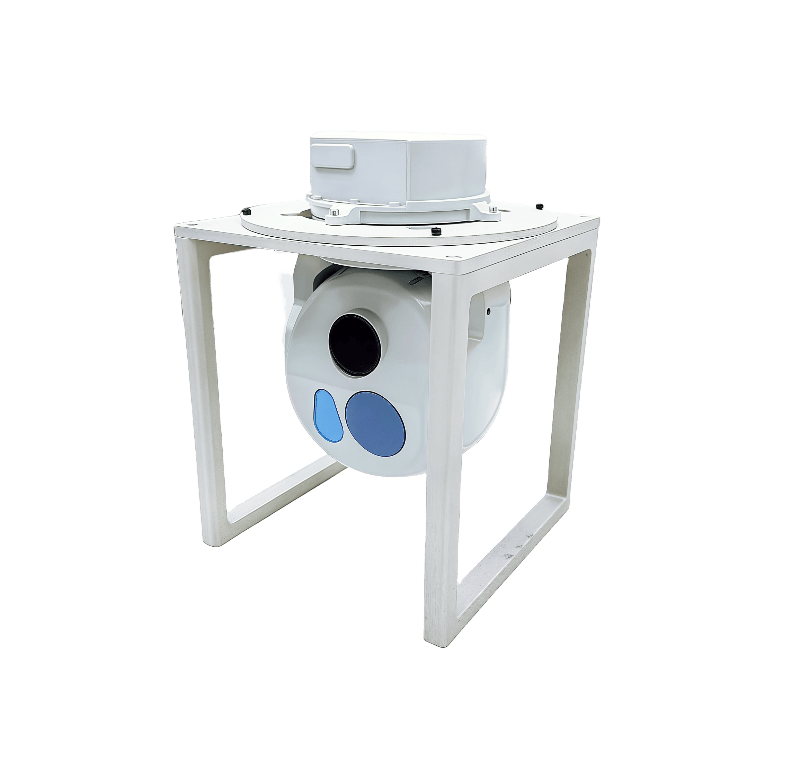

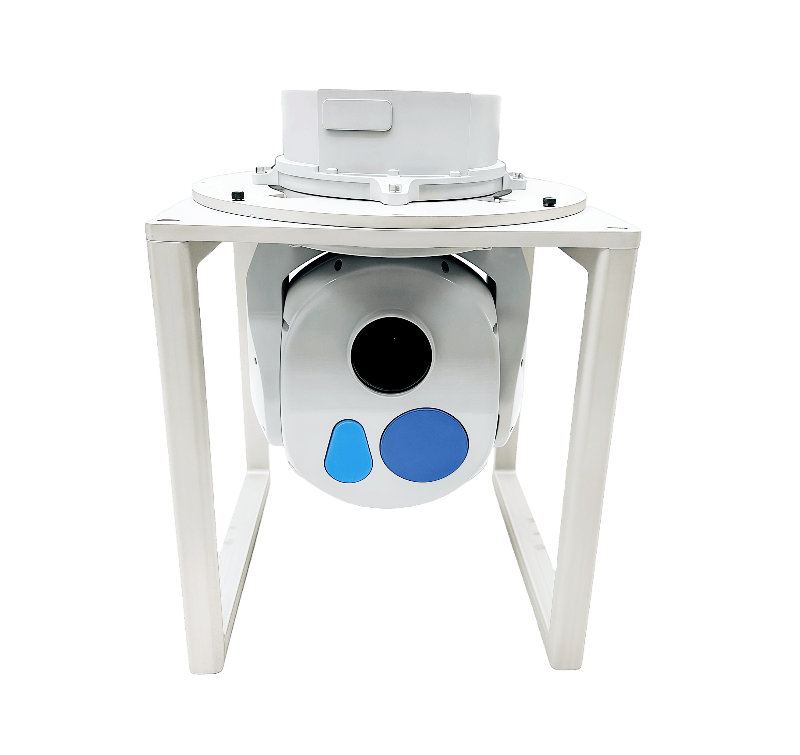

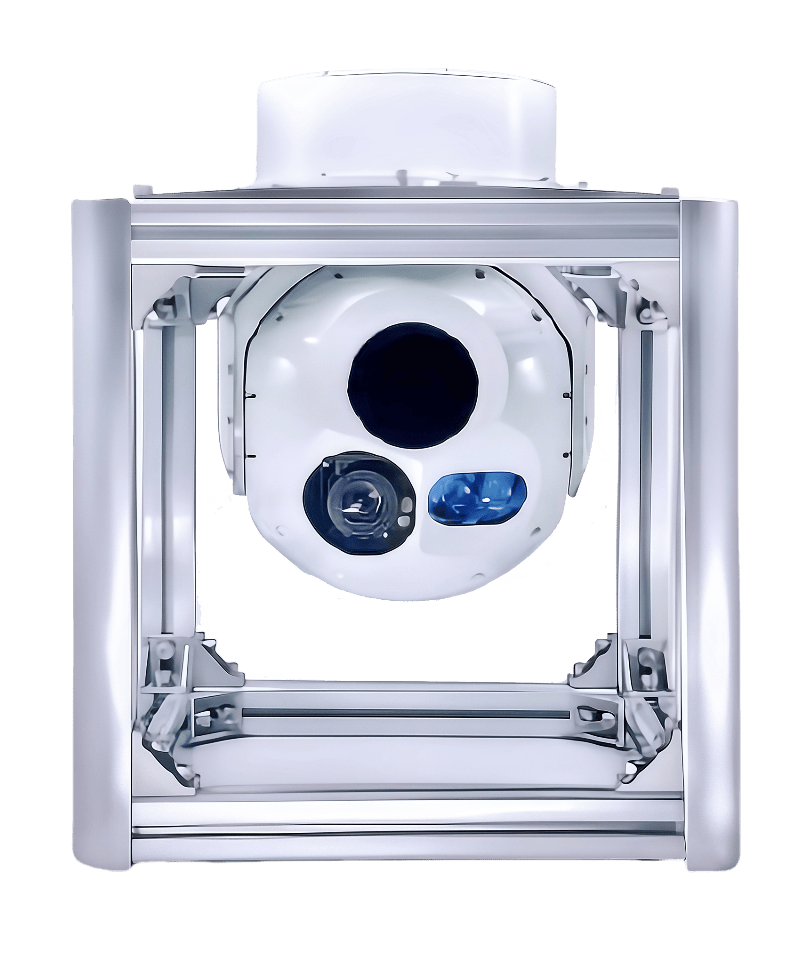

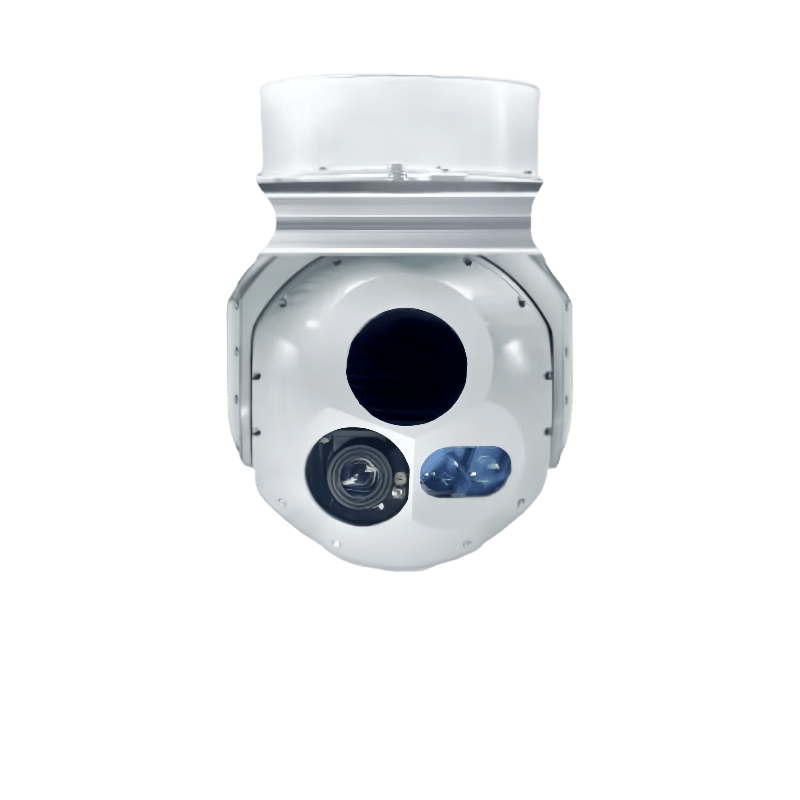

NTEAGLE260A Electro-Optical Pod |
Voltage | 28VDC |
Power Consumption | Avg ≤200W,Peak ≤300W |
Gimbal | Pitch Angle | -110°～ +20° |
Yaw Angle | 360°continuous rotation |
Stable accuracy | ≤35μrad（RMS） |
Angular Measurement Accuracy | ≤1mrad |
Tracking accuracy | ≤0.1mrad（RMS） |
Maximum search angular velocity | ≥60°/s |
Maximum tracking angular velocity | ≥10°/s |
Recording Duration | ≥5 h |
External Interfaces | Video Interfaces:1 channel network digital video output,1 channel HD-SDI video output Communication Interfaces:1 channel RS422 serial port |

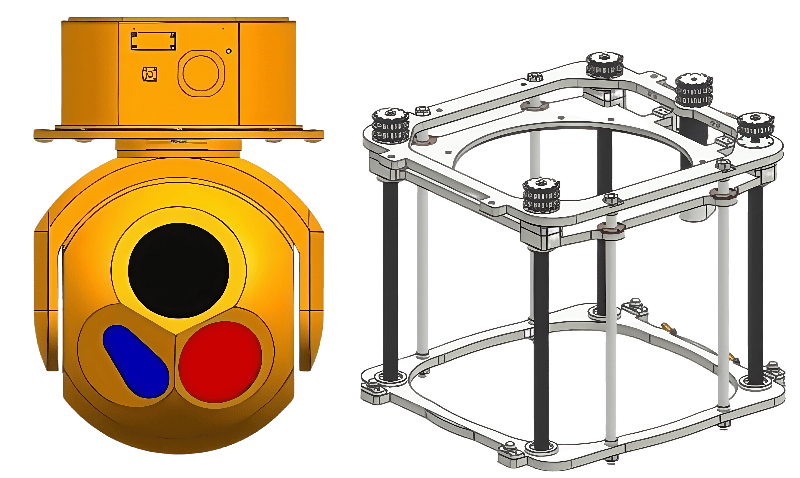

Control method | Unibody Electro-Optical Turret with Lifting Mechanism |
Visible Light Television | CMOS | Optical Continuous Zoom,Auto-focus,Real-time Digital Image Enhancement |
Resolution & Frame Rate | 1920×1080@60fps |
Wavelength | 0.4µm～0.7µm |
Field Angle (FOV) | 1.85°×1.04°~19.77°×11.12 ° |
Zoom Mode | Automatic, One-touch Autofocus, Manual |
Range coverage (Operational Conditions: - Minimum Visibility:≥23 km - Maximum Relative Humidity:≤70% - Detection/Tracking Target Size:4m×6m ） | Detection Range:≥15km; Identification Range:≥9km |
Thermal Imaging | Features | Optical continuous zoom, autofocus, polarity reversal, non-uniformity correction (NUC), and image enhancement. |
Detector | Cryogenically Cooled Mid-Wave HgCdTe (MCT) 640×512 Staring Focal Plane Array |
Resolution & Frame Rate | 640×512@60fps |
Wavelength | 3μm ～5μm |
Type | MWIR |
Field of View | 1.84°×1.48°~35.49°×28.39 ° |
Detection Range | ≥10km （Visibility:≥23 km - Relative Humidity:≤70% - Target-Background Temperature Difference:5K (∆T) - Target Size: 4m×6m） |
Recognition Range | ≥7km （Visibility:≥23 km - Relative Humidity:≤70% - Target-Background Temperature Difference:5K (∆T) - Target Size: 4m×6m） |
Laser Target Designator | Energy | ≥40mJ |
Illumination range | ≥5km (Operational Conditions: - Minimum Visibility:≥23 km - Maximum Relative Humidity:≤70% - Detection/Tracking Target Size:4m×6m） |
Illumination Accuracy | Supports User-Programmable Encoding |
Beam Divergence | ≤0.35mrad |
Target Detection Range | ≥50m-9000m |
Min Range | ≤50m |
Accuracy | ≤5m |
Pulse Rate | Single-shot，1Hz，5Hz |
Wavelength | 1064 nm |
Protection Level | IP54/IP67 |
Work Condition | - 4 0℃～+60℃ |
Storage Condition | - 5 0℃～+70℃ |
Gimbal Size | φ260mm×400mm |
Weight | Pod: ≤13 kg; Lifting Mechanism: ≤5 kg |
