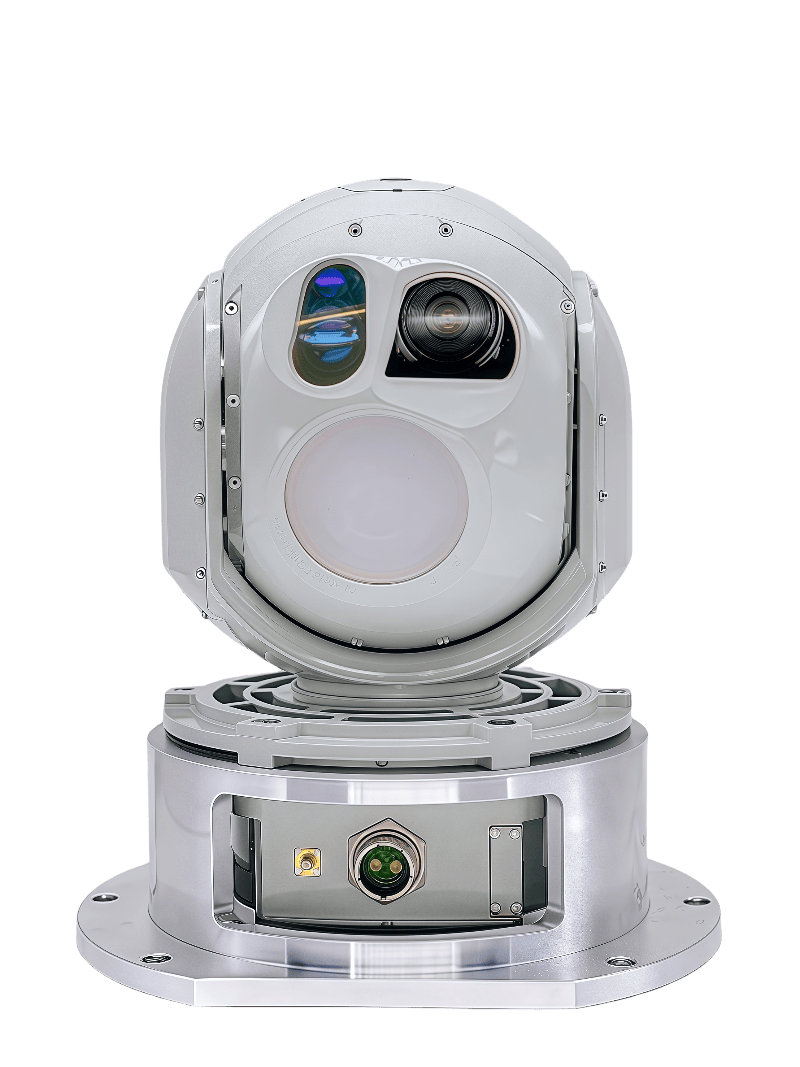

NTEAGLE240A Electro-Optical Pod |
Gimbal
Technical
Parameters | Voltage | 28VDC |
Power Consumption | Avg ≤80W,Peak ≤200W |
Weight | ≤10kg |
Gimbal Size | Φ240mm×362.1mm |
Protection Level | IP54/IP67 |
Control Interface | 2 channel Asynchronous RS422 Serial Port, |
Video Output | 1 channel Network Digital Video Output
1 channel Synchronous RS-422 Video Output
1 channel HD-SDI Output (High-Definition Serial Digital Interface) |
Operating Temp. | -40 ℃ ～+ 60 ℃ |
Storage Temp. | -50 ℃ ～+ 70 ℃ |
Swing Range | 360°continuous rotation |
Maximum Search Angular Velocity | ≥60 °/s |
Maximum Tracking Angular Velocity | ≥10 °/s |
Recording Duration | ≥5 h |
Stable accuracy | ≤35μrad（RMS） |
Tracking accuracy | ≤0.1mrad（RMS） |
Angular Measurement Accuracy | ≤1mrad |
Pitch Angle | -110°～+20° |
Visible Light Imaging | Resolution and Frame Rate | 1920×1080 |
Wavelength | 0.4µm～0.7µm |
Range Coverage | Detection Range:≥9km,
Identification Range:≥5km
(Conditions: Visibility ≥23 km, relative humidity ≤70%, tested on a 4 m×6 m target). |
Field of View | 2°×1.12°～52.5°×29.4° |
Features | Optical continuous zoom, autofocus, and image enhancement capabilities. |
Laser Rangefinder Module Parameters | Wavelength | 1540nm |
Blind Zone | 50m |
Measurement Range | 50m-6000m |
Pulse Repetition Frequency（Hz） | Single-shot，1Hz，5Hz |
Accuracy | ≤2m |
Infrared
Thermal
Imaging | Resolution and Frame Rate | 640×512 |
Wavelength | 3μm~5μm |
Range Coverage | Detection Range:≥8km,
Identification Range:≥5km
(Conditions: Visibility ≥23 km, relative humidity ≤70%, 5K Temperature difference between target and background, tested on a 4 m×6 m target) |
Field of view | 1.84°×1.48°～ 35°×28° |
Detector | Cooled Mid-Wave HgCdTe (Mercury Cadmium Telluride) 640×512 Staring Focal Plane Array |
Features | Optical continuous zoom, autofocus, polarity reversal, non-uniformity correction (NUC), and image enhancement. |
