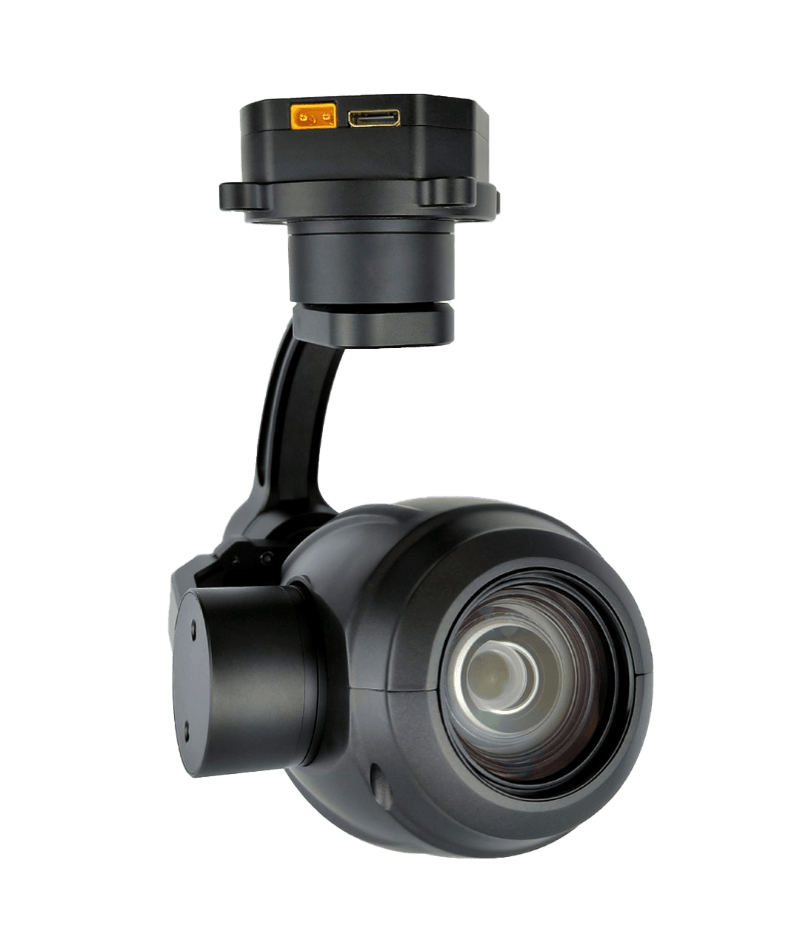

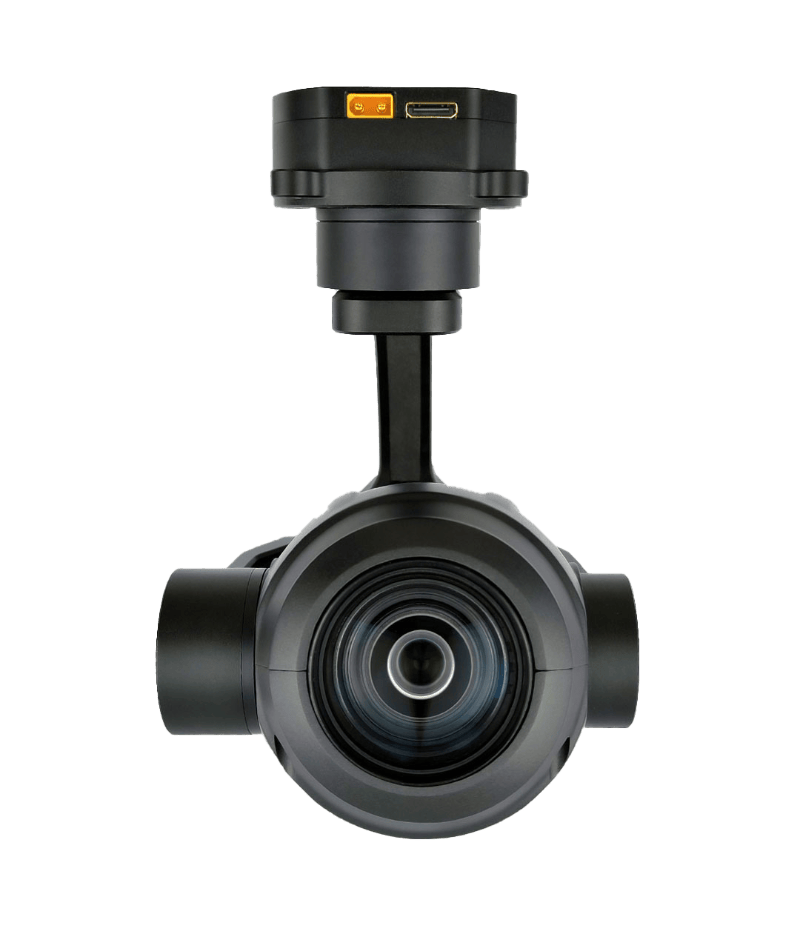

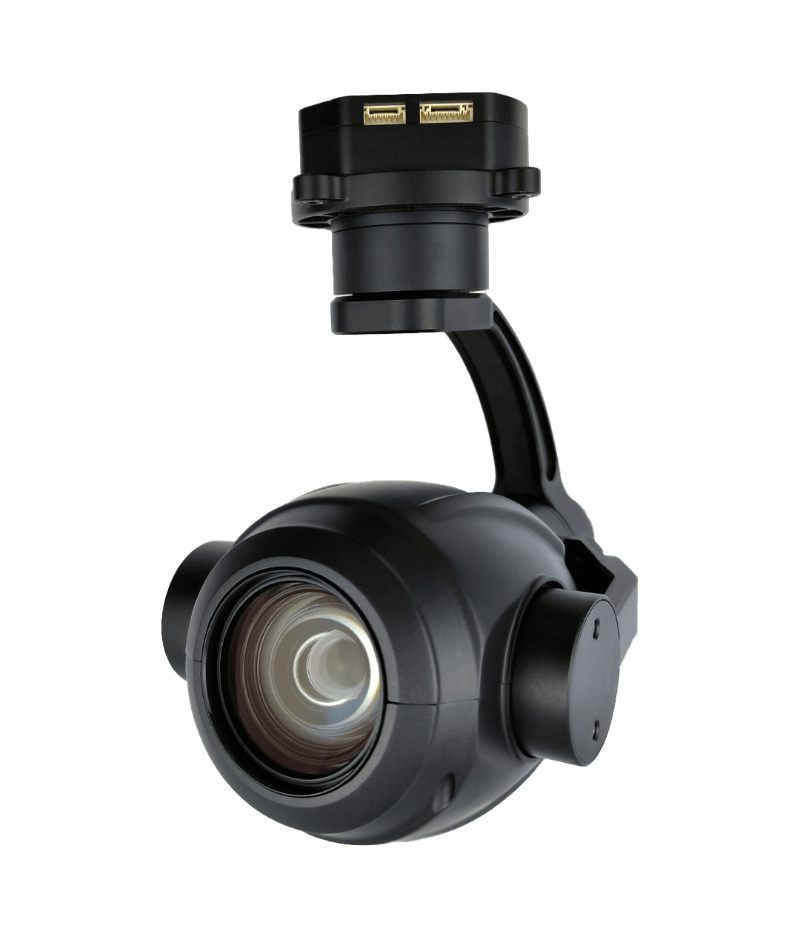

NTSKY207 Starlight Night Vision Gimbal Camera |
Voltage | DC12V-26.2V |
Power Consumption | 6.72W |
Technical Parameters | Roll Angle | -45°～ +45° |
Pitch Angle | -30°～ +120° |
Yaw Angle | -280°～ +280° |
Pitch And Roll Jitter Angle | ±0.02° |
Horizontal Jitter Angle | ±0.03° |
One-Click Restore | One-click restore to the initial position |
Adjustable Gimbal Speed | Adaptive Speed Control (Visible Light Camera) |
Visible Light Camera | Sensor | 1/1.8 Inch 8 mega Pixels STARVIS2, low-noise CMOS SENSOR |
Zoom | 20× HD optical zoom lens, f=6.7±5%～125±5%mm |
Focus | Focus in real time, less than 1 secs |
Video Output | Ethernet (RTSP) output, Local TF card 4K,1080p recording |
Field Of Vision(FOV) | D : WIDE 66.6º±5% TELE 4.0º±5% H : WIDE 59.6º±5% TELE 3.5º±5% V : WIDE 35.7º±5% TELE 2.0º±5% |
Video Mode | 4K 30fps/1080P 30fps |
Target Recognition and Tracking | Min Tracking Target Size | 16×16 pixels |
Max Tracking Target Size | 256×256 pixels |
Maximum Allowable Occlusion Time | 2 seconds |
Tracking Speed | 50 Pixel/Frame max |
Simultaneous Detection Qty | 100 targets max |
Recognized Categories | Human and Vehicle |
Min Detection Target Size | 32×32 pixels |
Storage Capacity | 128G TF card; class6 and above; |
Image Storage Format | JPEG format; multiple pixel options available |
Video Storage Format | H264, 4K; 1080P; |
Image Output Interface | H.264 Stream Output over Wireless Network |
Control Mode | IP, SBUS or Uart command control, PC-Side Application, App/Software |
Control Interface | TTL |
Gimbal Size | 110mm×109.6mm×170mm |
Working Condition | -10℃ to +55℃ / 20% to 80% RH |
Storage Environment | -20℃ to +60℃ / 20% to 95% RH |
Weight | 690±10g |
