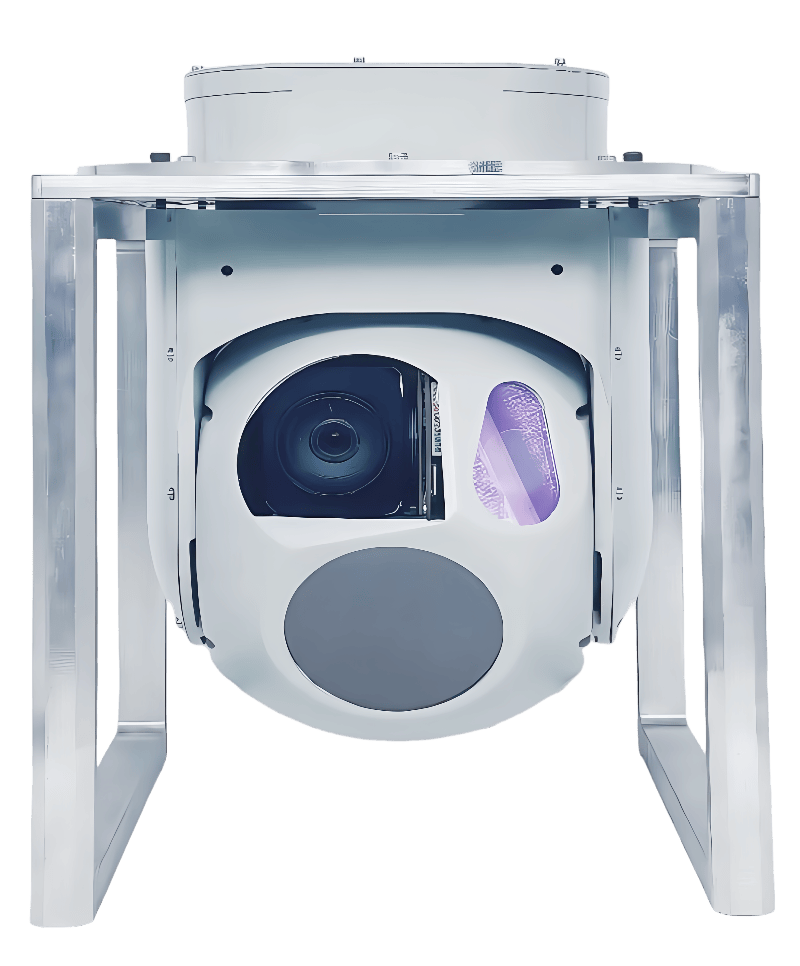

Gimbal
  Technical
  Parameters

Voltage

28VDC

Power Consumption

Avg    ≤50W,Peak  ≤150W

Weight

＜4.8kg

Gimbal Size

Gimbal Φ190mm×279.9mm

Protection Level

IP54/IP67

Control Interface

2 channel Asynchronous RS422 serial port

Video Output

1 channel network digital video output,

Operating Temp.

-40 ℃ ～+ 55 ℃

Storage Temp.

-45 ℃ ～+ 65 ℃

Maximum Search Angular Velocity

≥60 °/s

Maximum Tracking Angular Velocity

≥10 °/s

Recording Duration

≥5 h

Stable Accuracy

≤0.1mrad（RMS）

Tracking Accuracy

≤0.5mrad（RMS）

Angular Measurement Accuracy

≤1mrad

Pitch Angle

-110°～+10°

Yaw Angle

360°continuous rotation

Visible Light Imaging

Resolution and Frame Rate

1920×1080

Wavelength

0.4µm～0.7µm

Range coverage

Detection Range:≥7km,
  Identification Range:≥4km
  (Conditions: Visibility ≥23 km, relative humidity ≤70%,  tested on a 4 m×6 m target).

Field of view

2.4°×1.35°～58°×32.62°

Features

Features optical continuous zoom,   autofocus, and image enhancement capabilities.

Laser Rangefinder Module Parameters

Wavelength

1540nm

Accuracy

 ±1m

Blind Zone

100m

Measurement Range

100m-5000m

Infrared
  Thermal
  Imaging

Resolution and Frame Rate

640×512

Wavelength

8μm~12μm

Range Coverage

Detection Range:≥3.5km,
  Identification Range:≥1.8km
   (Conditions: Visibility ≥23  km, relative humidity ≤70%, 5K   Temperature   difference between   target and background, tested on a 4 m×6 m   target)

Field of view

7.32°×5.86°～35.5°×28.39°

Detector

Uncooled infrared thermal imager

Features

Optical continuous zoom, autofocus,   polarity reversal, non-uniformity correction (NUC), and image enhancement.
