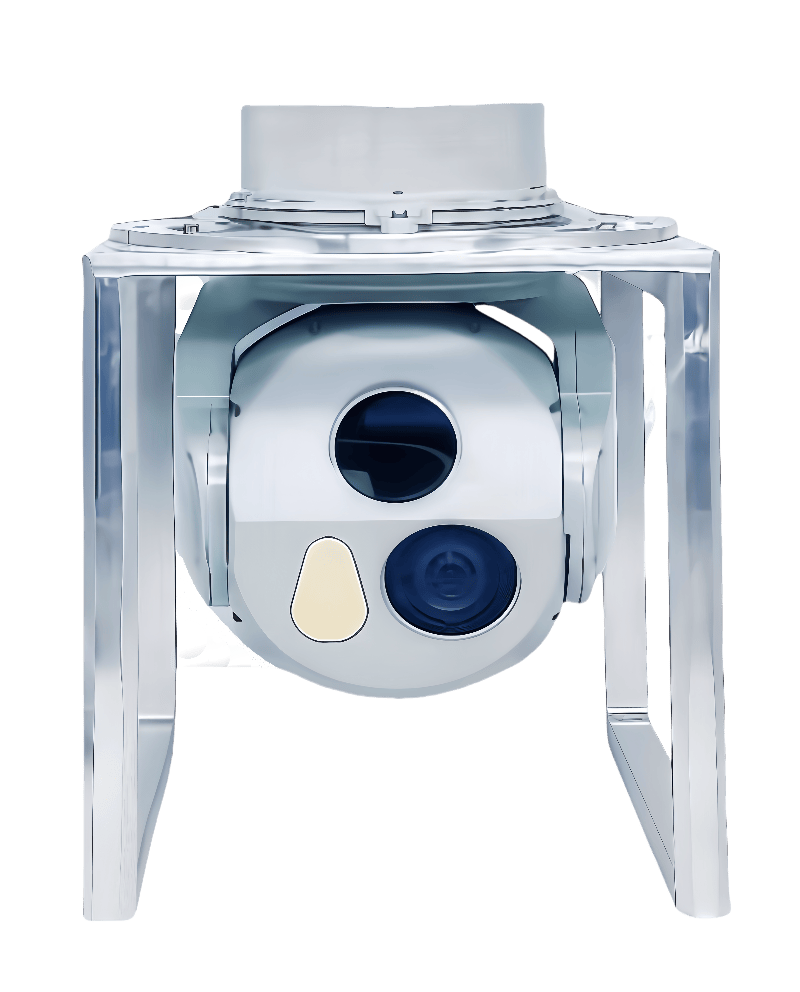

High-Performance Electro-Optical Pod for MALE UAVs

Voltage

28VDC

Power Consumption

Avg ≤50W,Peak ≤150W

Gimbal

Pitch Angle

-110°～ +10°

Yaw Angle

360°continuous rotation

Stable accuracy

＜0.1mrad（RMS）

Angular Measurement Accuracy

≤1mrad

Tracking accuracy

≤0.6mrad（RMS）

Maximum search angular velocity

≥60°/s

Maximum tracking angular velocity

≥10°/s

Recording Duration

4h

External Interfaces

Video Interfaces:1 channel network   digital video output,1 channel HD-SDI video output

Communication Interfaces:1 channel   RS422 serial port,1 channel RS232 serial port

Control method

Integrated Electro-Optical Turret

Control Equipment

Visible Light   Television

CMOS

Optical Continuous   Zoom,Auto-focus,Real-time Digital Image Enhancement

Resolution & Frame Rate

1920×1080@60fps

Wavelength

0.4µm～0.7µm

Field Angle (FOV)

2.4°×1.35°～58.9°×33.13°

Zoom Mode

Automatic, One-touch Autofocus,   Manual

Range coverage (Operational   Conditions:

- Minimum Visibility:≥23 km

- Maximum Relative   Humidity:≤70%

- Detection/Tracking Target   Size:4m×6m）

Detection Range:≥6km;   Identification Range:≥4km

Thermal Imaging

Resolution& Frame Rate

640×512@60fps

Wavelength

8μm ～12μm

Type

Uncooled infrared microbolometer   camera

Field of view

8.7°×6.5°

Detection Range

≥3km （Visibility:≥23 km

- Relative Humidity:≤70%

- Target-Background Temperature   Difference:5K (∆T)

- Target Size: 4m×6m）

Recognition Range

≥1km （Visibility:≥23 km

- Relative Humidity:≤70%

- Target-Background Temperature   Difference:5K (∆T)

- Target Size: 4m×6m）

Laser Rangefinder Module   Parameters

Target Detection Range

≥30m-2000m

≥30m-6000m

Min Range

30m

Accuracy

 ±1m

Pulse Rate

Single-shot，1Hz，5Hz

Wavelength

1535±5 nm

Protection Level

IP54/IP67

Work Condition

- 4 0℃～+55℃

Storage Condition

- 4 0℃～+65℃

Gimbal Size

φ184mm×272.9mm

Weight

≤3.5kg
