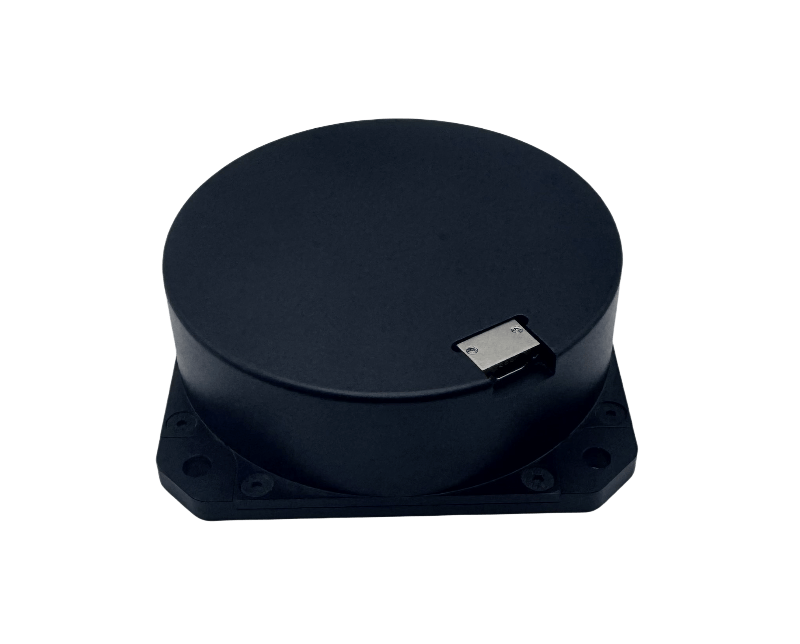

Product Model: NTFOG170B
Product Overview:Representing the pinnacle of the series, this high-accuracy single-axis FOG offers outstanding 0.02°/h bias stability and superior scale factor performance. It is engineered for the most demanding inertial navigation applications where maximum precision and long-term accuracy are critical.
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- Exceptional Precision Performance
Fulfill the rigorous demands of medium- and high-precision inertial navigation systems, including gyrocompasses and attitude-heading reference systems (AHRS)
- Robust Environmental Tolerance
Temperature Range: -45°C ~ +65°C (Arctic-to-desert battlefield coverage)
Magnetic Immunity: Proprietary magnetic shielding (<0.05°/hr/Gauss sensitivity)
Operates reliably in extreme conditions – from polar zones to open oceans and high-altitude
- Highly Integrated & Compact Design
Compact Dimensions: 70×70×32mm
Lightweight Structure: ≤280g
Monolithically Integrated Optoelectronic Architecture: Unifies light source (SLD), modulator (IOC), sensing coil, and circuitry into a single assembly
Enables space-efficient integration into vehicle-mounted, airborne, and marine systems
- Operational Efficiency
Ultra-Low Power Consumption: ≤5W (steady-state, +5V supply)
Rapid Startup: No warm-up required (intrinsic "rapid startup" capability)
Enhances system response speed and extends mobile platform endurance
APPLICATION SCENARIOS
- Land-Based Positioning & Orientation Systems
- Vehicle-Mounted North Seekers
- Airborne Attitude & Heading Reference Systems (AHRS)
- Marine Gyrocompasses
PRIMARY FUNCTIONS
- High-Precision Angular Rate Sensing
- Inertial Navigation & Stabilization
- Operation in Demanding Environments
- High Dynamic Range Motion Measurement
SPECIFICATIONS
Table1: Basic Parameters
Performance Parameters | NTFOG170B |
Zero-Bias Stability | ≤0.02°/h(with 10-second averaging) |
Zero Bias Repeatability | ≤0.02°/h |
Random Walk Coefficient | <0.002°/√h |
Scale Factor Nonlinearity | ≤10ppm |
Scale Factor Repeatability | ≤10ppm |
Operating Temperature | -45°C ~ +65°C |
Dynamicrange | ≥±500°/s |
Input Voltage | +5V |
Steady State Power Consumption | ≤5W |
External Dimension | 70mmx70mmx32mm |
Weight | ≤280g |
Note: All performance parameters and interfaces are customizable to mission requirements.
