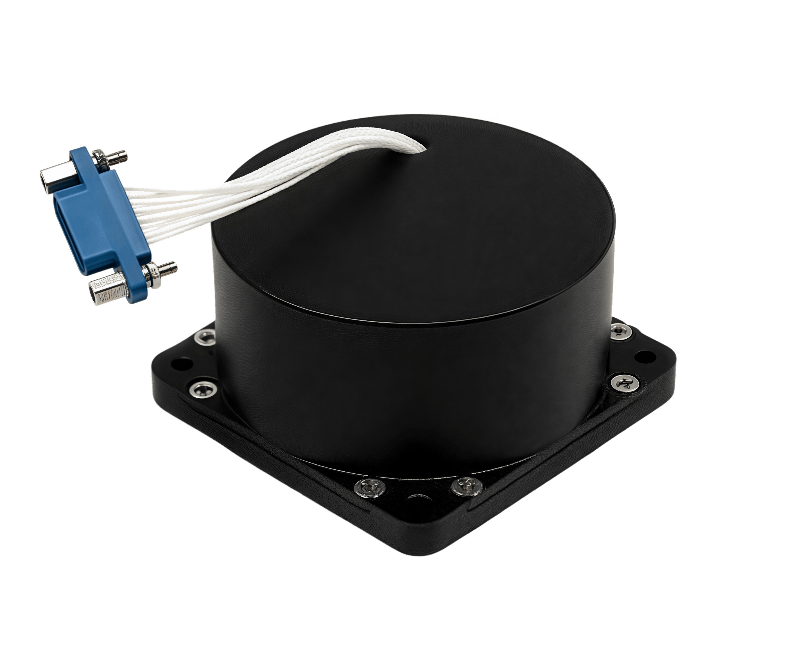

Product Model: NTFOG160A
Product Overview:Engineered for high-dynamic environments, this single-axis FOG delivers exceptional 0.1°/h bias stability and a very wide bandwidth (DC~500Hz). Its superior magnetic immunity and MIL-STD compliance make it a key component for precision-guided munitions, aerospace vehicles, and other demanding defense applications.
WhatsApp: +43 67844091116
Tel: +86 18608017948(WeChat)
E-mail: marketing@newtron-tech.com
KEY FEATURE
- High-Dynamic Response Capability
Dynamic Range: ≥±800°/s (8× wider than commercial UAV needs)
Bandwidth: DC~500Hz
Technical Breakthrough: Digital closed-loop algorithm suppresses signal distortion during fighter jet roll maneuvers
- Extreme Environment Reliability
Temperature Range: -45°C ~ +65°C (Arctic-to-desert battlefield coverage)
Magnetic Immunity: Proprietary magnetic shielding (<0.01°/hr/Gauss sensitivity)
Certification: MIL-STD-461G EMI/EMC compliant
- Military-Grade Precision
Bias Stability: ≤0.1°/hr (10-second averaging)
Angle Random Walk: <0.01°/√hr
Strategic Value: Meets targeting accuracy requirements for anti-tank missile seekers (outperforms U.S. AN/PEQ-23's 0.15°/hr)
APPLICATION SCENARIOS
- Defense & Military Industry: Precision-Guided Munitions, Armored Vehicles, Aerospace
- Advanced Industry: Energy, Transportation, Robotics, Surveying & Mapping
- Specialized Operations: Polar Expeditions, Deep-Sea Exploration, Disaster Relief
PRIMARY FUNCTIONS
- High-Precision Angular Rate Sensing
- Inertial Navigation & Stabilization
- Operation in Demanding Environments
- High Dynamic Range Motion Measurement
SPECIFICATIONS
Table1: Basic Parameters
Performance Parameters | NTFOG160A |
Zero-Bias Stability | ≤0.1°/h(with 10-second averaging) |
Zero Bias Repeatability | ≤0.1°/h |
Random Walk Coefficient | <0.01°/√h |
Scale Factor Nonlinearity | ≤50ppm |
Scale Factor Repeatability | ≤50ppm |
Operating Temperature | -45°C ~ +65°C |
Dynamicrange | ≥±800°/s |
Input Voltage | +5V |
Steady State Power Consumption | ≤5W |
External Dimension | 60mmx60mmx32.5mm |
Weight | ≤160g |
Note: All performance parameters and interfaces are customizable to mission requirements.
