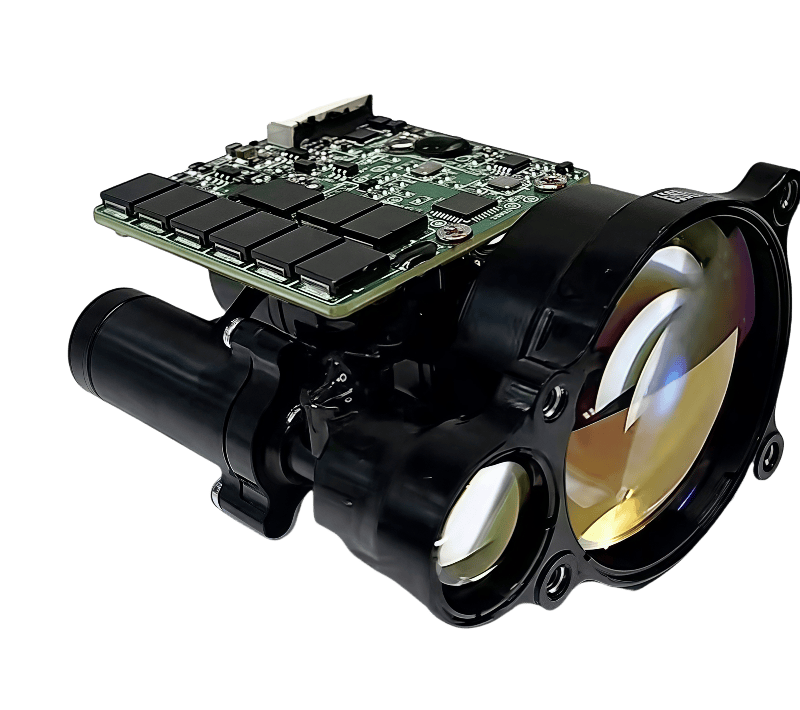

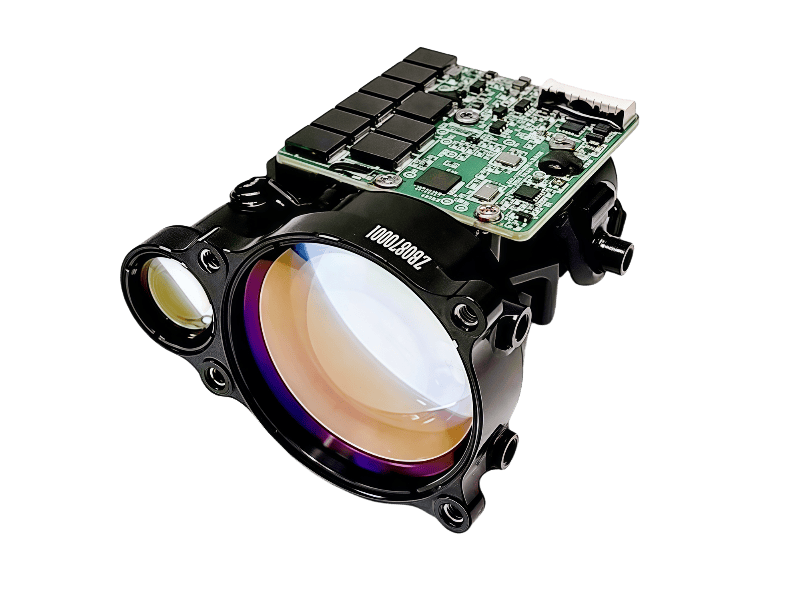

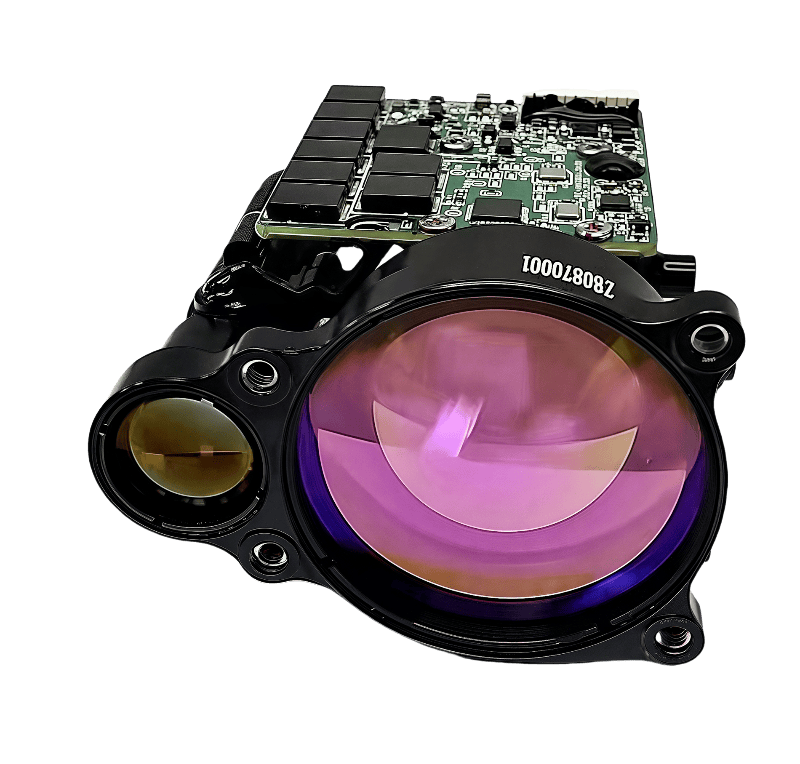

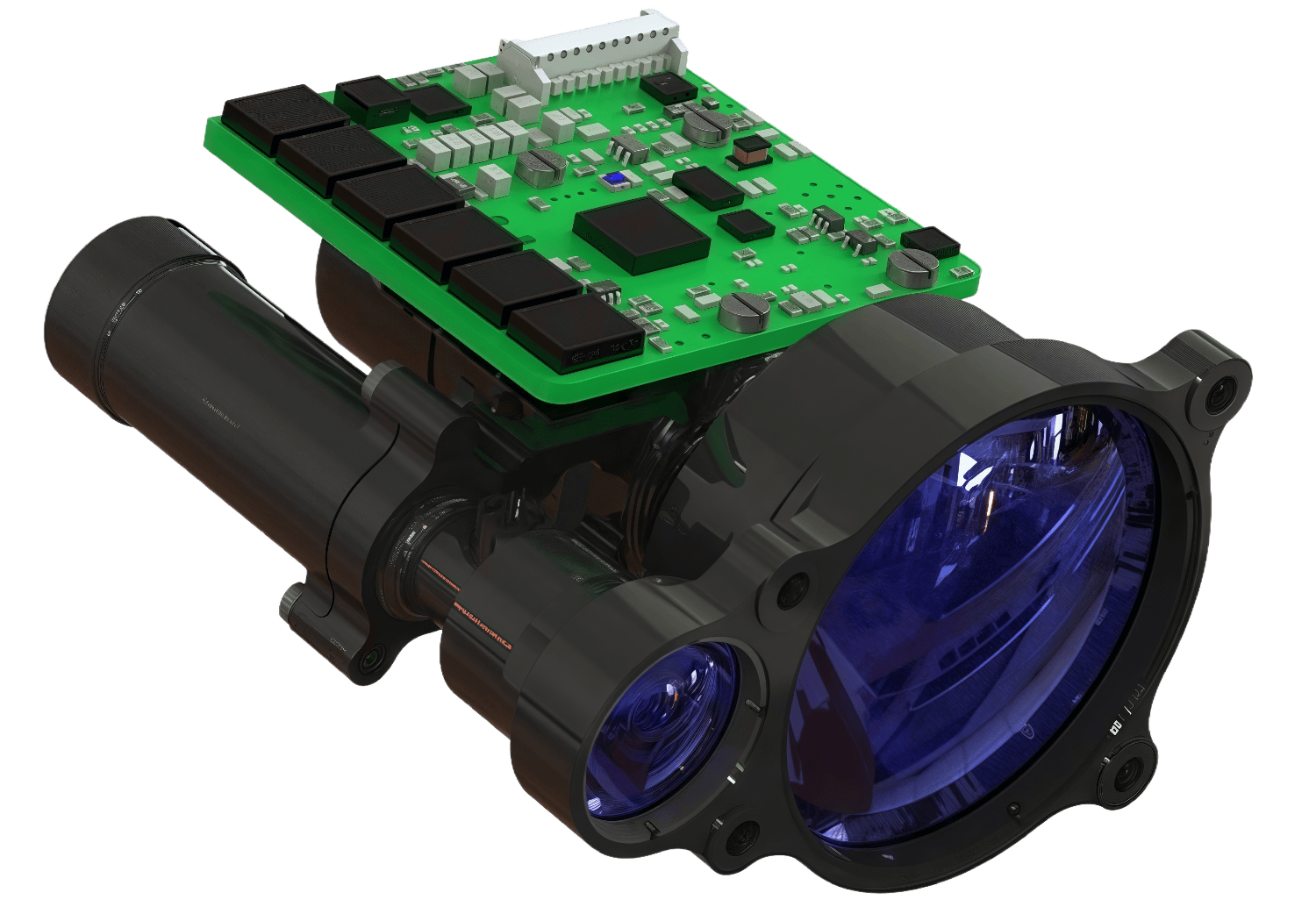

Precision Measurement, Minimal Weight: The 9.5km Laser Module

Ultra-compact, high-precision laser rangefinder module with exceptional performance

Model: NTLRB9500A

⚡ Key Features

👁️

Eye-Safe Operation

1535nm Laser Compliant with IEC 60825-1 safety standards

📦

Ultra-Compact Design

Size ≤66×59×42mm, Weighs ≤ 102g

🔌

Dual Interface Options

RS422/TTL interface for flexible integration

🌡️

Wide Temperature Range


-40℃ to +60℃ operational with IP67 protection

📊 Technical Specifications

ModelNTLRB9500A
Wavelength1535nm±10nm
Range (Large Target)≥ 9500m
Accuracy±1m
Blind Zone≤ 80m
Pulse Repetition FrequencySingle-shot, 1Hz, 5Hz
Operating Temperature-40℃ to +60℃
Communication InterfaceRS422/TTL (Optional)
Power SupplyDC 5V~14V
Power ConsumptionStandby ≤0.001W, Avg ≤3W
Dimensions≤ 66mm×59mm×42mm
Weight≤ 102g

🚀 Application Scenarios

Industrial Automation & Robotics                Surveying & Construction                Drones/UAVs Navigation                Security Systems                Autonomous Vehicles & ADAS

Primary Functions

  • ✓ Distance measurement and real-time reporting

  • ✓ Single-shot and continuous measurement

  • ✓ Laser emission count reporting

  • ✓ Self-Diagnostics with Status Reporting

  • ✓ Fault protection and safety measures

  • ✓ Power-On Initialization & Temperature Monitoring

  • ✓ Firmware Update via UART

  • ✓ First/Last Target Priority Ranging

🔌 Electrical Interface

Power Supply Voltage: DC 5V-14V

Standby Power Consumption: ≤ 0.001W

Average Power Consumption: ≤ 3W

Pin Definitions

Pin No.LabelElectrical DefinitionRemarks
P-1VIN+Input Power PositivePower Supply
P-2COMInput Power Negative-
P-3POWER_CTLLow-Power Control PortActive when floating or at high-level (3V~9V)
P-4, P-5RS422_TXD+/TXD-Signal Output PortRangefinder to Host
P-6, P-7RS422_RXD-/RXD+Signal Input PortHost to Rangefinder
P-8GNDCommunication Ground wireCommunication Ground wire
P-9, P-10TTL_RXD/TXDSignal Input/Output Port3.3V TTL

Important Note

All performance specifications and interfaces can be customized to meet specific requirements. For optimal performance, please follow the recommended operating conditions and avoid exposure to extreme environmental conditions.
