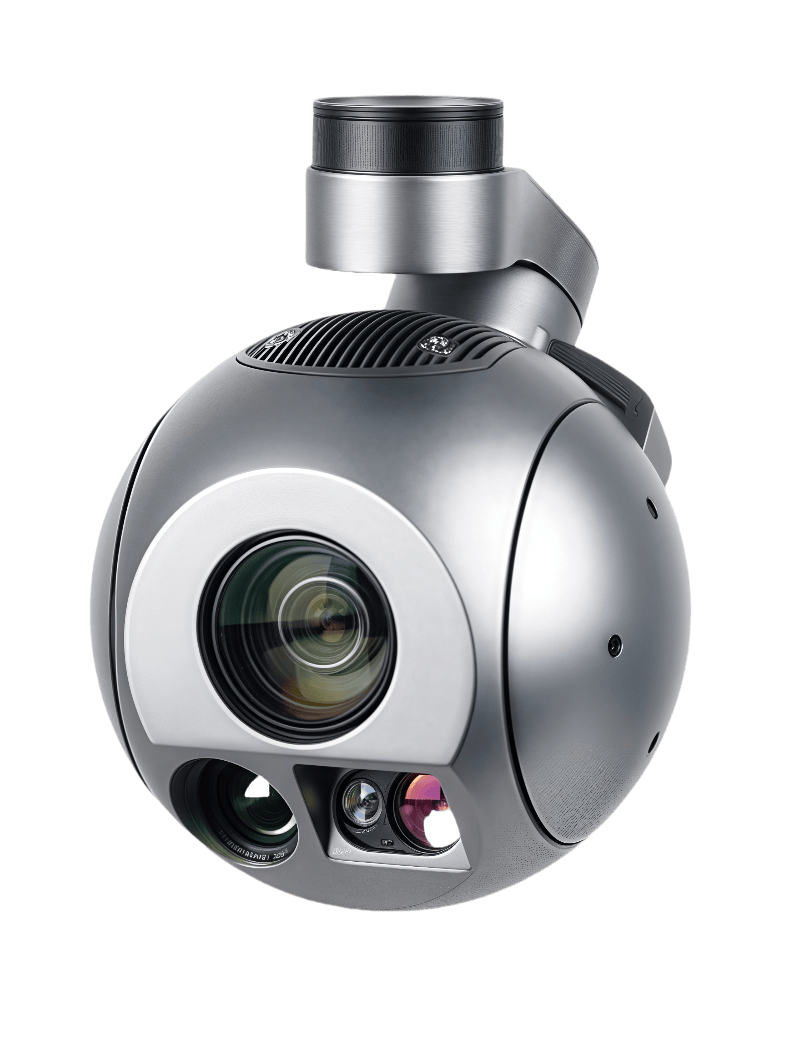

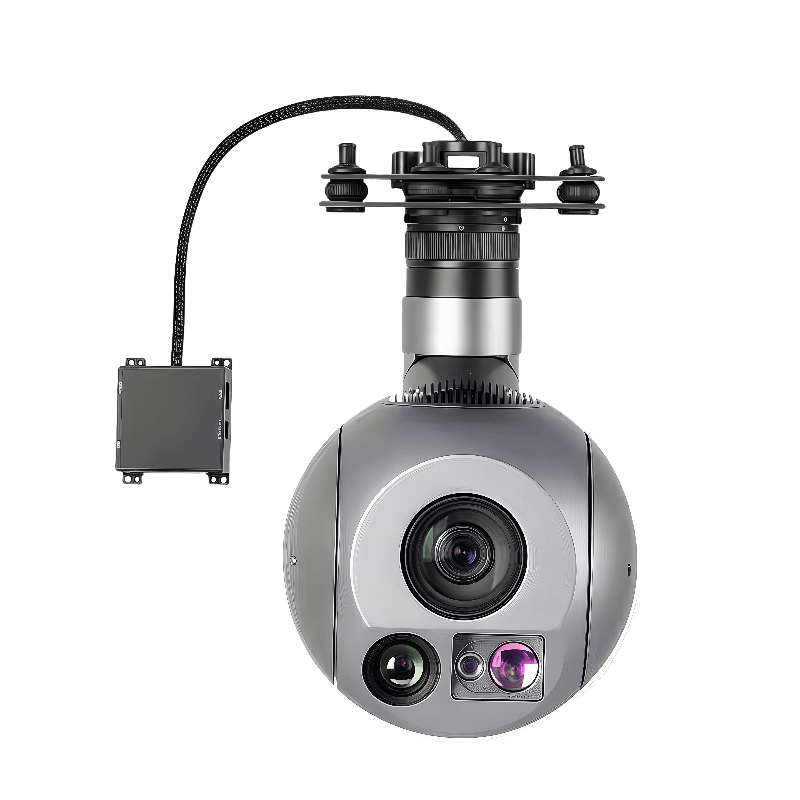

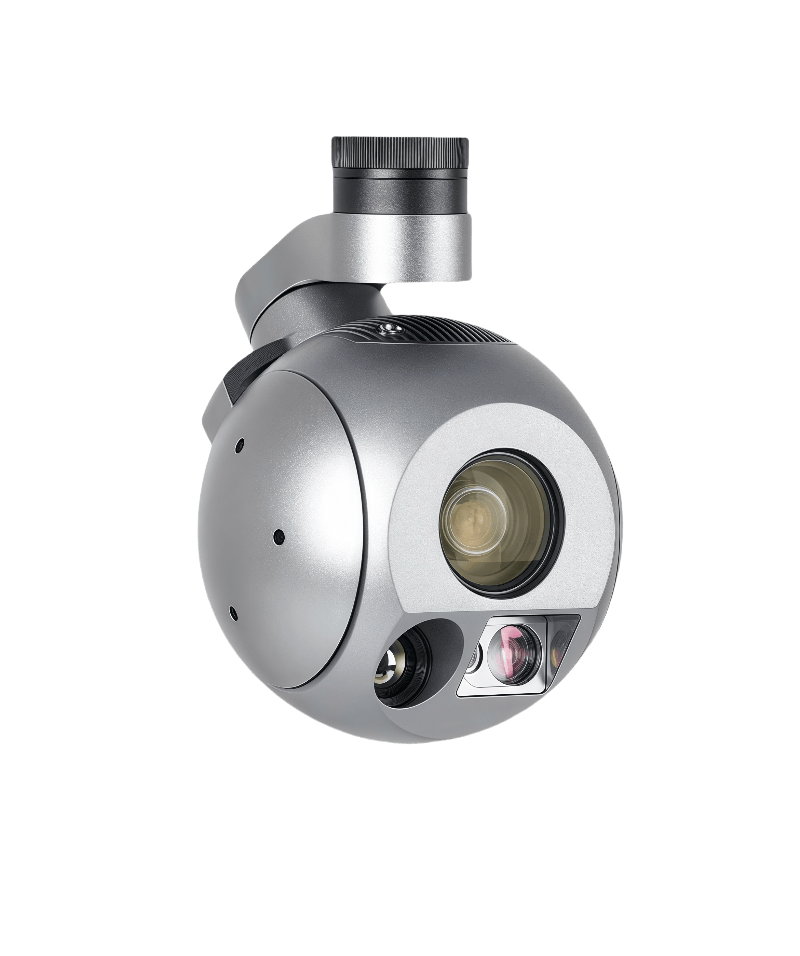

NTSKY125D Electro-Optical Pod(Quick-Disconnect (QD) with Fast Release Mechanism) |
Voltage | DC16V(Input Voltage: 4S~6S, Output Voltage: 5V (PWM)) |
Power Consumption | Avg ≤10W,Peak ≤16W |
Gimbal | Roll Angle | -40°～ +40° |
Pitch Angle | -60°～ +130° |
Yaw Angle | -300°～+300 °/±360°×n（Network Output-Only Version） |
Stable accuracy | ±0.02° |
Maximum Angular acceleration | ≥90°/s |
Angular Position Accuracy | ≤0.3 ° |
Control method | PWM / S.BUS / Serial TTL / TCP (with Network Output) / UDP (with Network Output) One-Click Restore |
Visible Light Imaging | CMOS | 1/2.8-inch Sony CMOS |
Resolution & Frame Rate | 1920×1080@60fps |
Optical Zoom | 40× optical zoom |
Focal Length | f=4.25mm (wide-angle) to 170.0mm (telephoto), F1.6 to F4.95 |
Field Angle (FOV) | Horizontal: 66.35° (Wide) → 1.90° (Tele) Vertical: 39.98° (Wide) → 1.11° (Tele) Diagonal: 73.80° (Wide) → 2.16° (Tele) |
Digital Zoom | 32×Digital Zoom |
Zoom Mode | Automatic, One-touch Autofocus, Manual |
Image Sensor (Effective Pixel Count) | Approx. 5.13MP |
Thermal Imaging | Resolution& Frame Rate | 640×512@60fps |
Wavelength | 8μm ～14μm |
Focal Length | 19mm |
Type | Uncooled infrared microbolometer camera |
Field Angle | Horizontal: 22.9° Vertical: 18.4° Diagonal: 29.0° |
NETD | ≤50mk@F1.0 |
Detection Range | (Human: 1.8×0.5m): 792m, (Vehicle: 4.2m×1.8m): Detection Range≤3km |
Recognition Range | (Human: 1.8×0.5m): 198m (Vehicle: 4.2m×1.8m): 607m |
Verification Range | (Human: 1.8×0.5m): 99m (Vehicle: 4.2m×1.8m): 303m |
Display Modes | White Hot (Default) Black Hot (Inverted) Pseudo Color (Rainbow/Ironbow preset) |
Electronic Zoom | 1x ~ 8x |
| Deviation Pixel Update Rate | 30Hz |
Deviation Pixel Output Delay | <30ms |
Tracking Speed | 48 pixels/frame |
Laser Rangefinder Module Parameters | Target Detection Range | Human (1.8×0.5m): ≥2000m Vehicle (4.2×1.8m): ≥3000m |
Min Range | 15m |
Accuracy | ±1m |
Pulse Rate | 1-10Hz (adjustable) |
Wavelength | 1535±5 nm |
Beam Divergence | 0.6 mrad |
Protection Level | IP54/IP67 |
Work Condition | - 2 0℃～+ 6 0℃ |
Storage Condition | - 4 0℃～+ 6 0℃ |
Gimbal Size | 134.2×125×210.4 mm,Quick-Disconnect (QD) with Fast Release Mechanism |
Weight | ≤1136g,Quick-Disconnect (QD) with Fast Release Mechanism |
