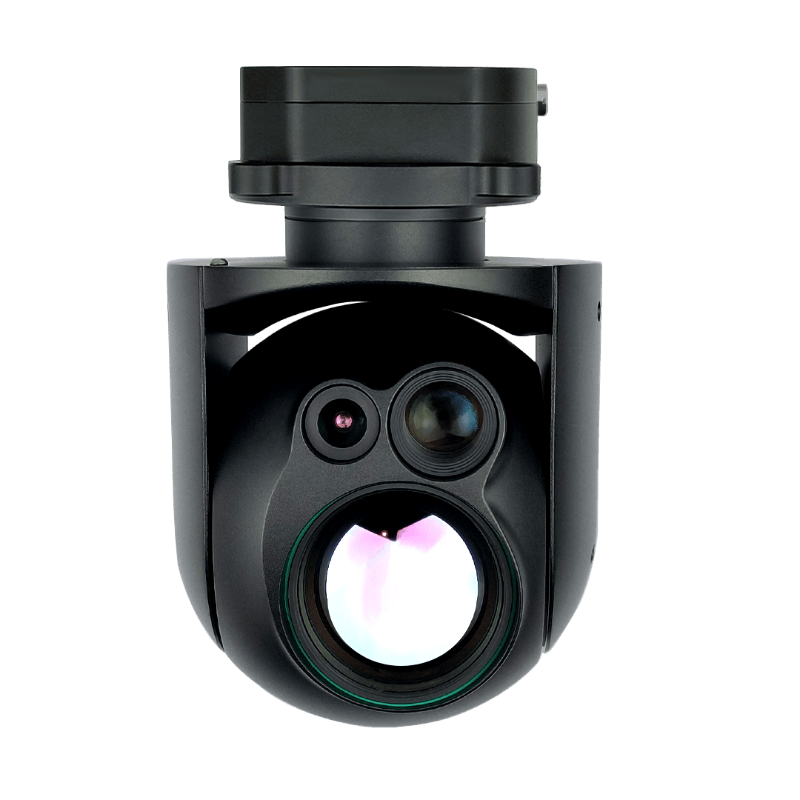

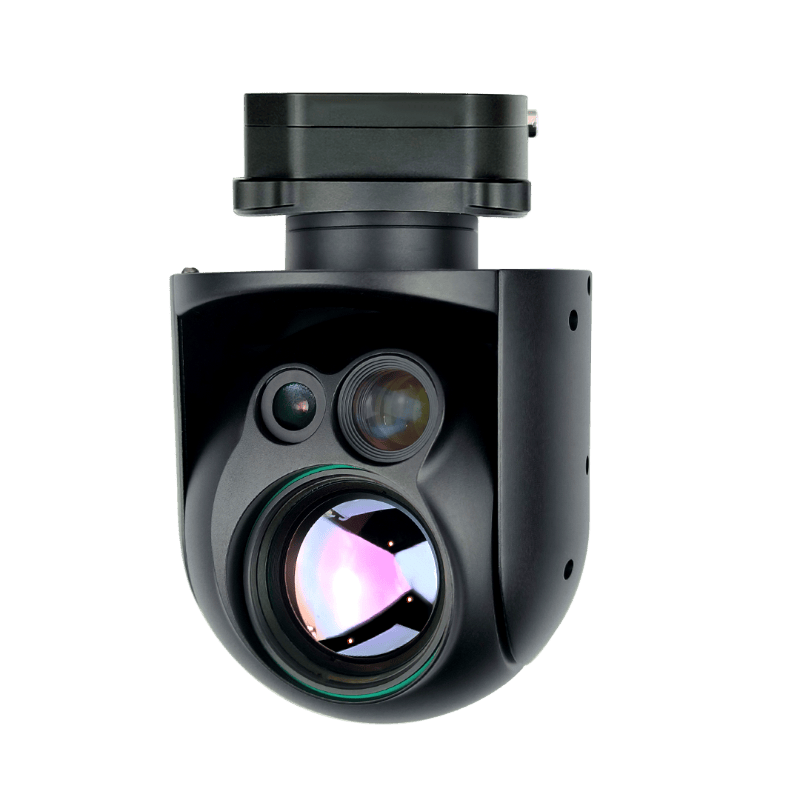

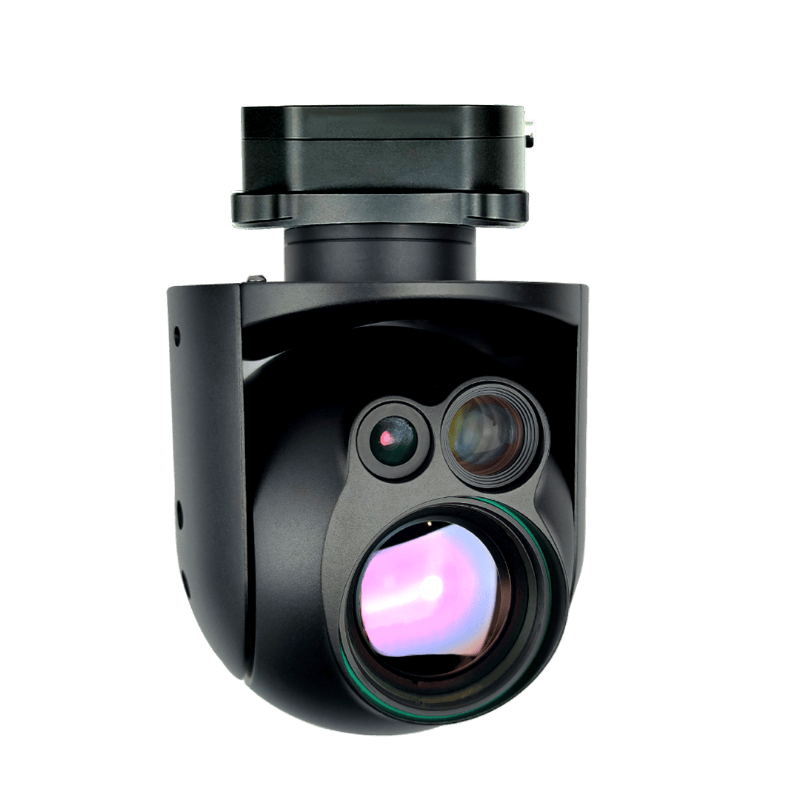

NTSKY079 Three-light And Two-axis Stabilization Small Pod |
Voltage | DC 12V-26.2V② |
Power Consumption | Dynamic 6.4W |
Specification | Pitch Angle | -20°～+180° |
Yaw Angle | Unlimited Position |
Pitch and Roll Jitter Angle | ±0.02° |
Horizontal Jitter Angle | ±0.03° |
Control method | Ethernet control 、SBUS、 PWM Signal Control(Decoder board) 、UART、 IP network or TTL serial |
4K EO | CMOS | 8M Pixel |
Digital Zoom | 7× digital zoom |
Compressed storage mode | H.264, H.265, 4K Video Stream Local TF Card Storage |
FOV | 10.1°× 7.6° |
Focal Length | 35mm |
1080P EO | CMOS | 2M Pixel |
Digital Zoom | 9× digital zoom |
Image and Video Storage Formats | Image:JPEG format; Multiple pixel options available Video:H.264 format; H.265 format; 1080P Video Streaming Network Output Mode：1080P 30fps/4K 30fps |
FOV | 60°×43° |
Focal Length | 6mm |
IR Thermal | Resolution | 640×512 pixel |
Pixel spacing | 12μm |
Type | Uncooled infrared microbolometer camera |
Wavelength | 8～14μm |
Thermal sensitivity (NETD) | ≤50mk@F1.0 |
Field Angle | 45mm Lens，FOV：9.8 ° ×7.8 ° |
Temp. Measurement Range | -20°C~ 150°C, extendable to 100°C~550°C |
Temp. Measurement Accuracy | ±3°C or ±3% (whichever is greater) |
Measurement (Optional) | Supports real-time temperature measurement at maximum, minimum, and center points; point-and-select temperature measurement via UI; and full-pixel temperature data storage. |
Tracking Identification | Min tracking target size | 16×16 pixels |
Max tracking target size | 256×256 pixels |
Maximum Allowable Occlusion Time | 2 seconds |
Tracking speed | 50 Pixel/Frame max |
Simultaneous detection qty | 100 targets max |
Recognized categories | Human and Vehicle |
Min detection target size | 32×32 pixels |
Image Output Interface | Network H.264 Code Stream Output |
Video Output | Ethernet (RTSP) output, Local TF card 4K,1080p recording |
Control Interface | TTL |
Device Size | φ：148mm H:136mm |
Storage capacity | 32-256GB TF card (microSD), FAT32 format. |
System Boot-up Preparation Time | 20s |
Work Condition | -10℃ to +55℃ / 20% to 80% RH |
Storage Condition | -20℃ to +60℃ / 20% to 95% RH |
Weight | 510±10g |
