Handheld Laser Rangefinder: The Ultimate Guide for Accurate, Reliable Measurements

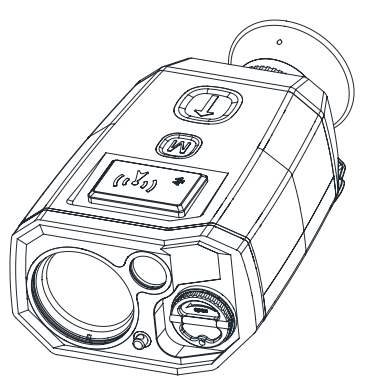

Whether you’re a hunter adjusting your aim, an outdoor enthusiast mapping a trail, or a construction professional verifying distances, one tool stands out for precision and portability: a high-quality handheld laser rangefinder. Today, we’re diving deep into our Class 1 Handheld Laser Rangefinder—breaking down its features, how to use it, and why it’s a game-changer for anyone who needs accurate distance, angle, or height data on the go.

Why a Handheld Laser Rangefinder? (And Why Ours Stands Out)

Gone are the days of guesswork or bulky measuring tools. A reliable laser rangefinder cuts through uncertainty, but not all models are created equal. Our device is built with 1535nm erbium glass laser technology (Class 1 eye-safe—no risk to your vision!) and designed for durability, portability, and versatility. Here’s what makes it unique:

• Extreme Range Options: Choose from three models (3k, 6k, 10k) to match your needs—ranging from 20–3500m (3k) up to 20–10000m (10k) for long-distance tasks like hunting or large-scale surveys.

• 100% Accuracy: ±1m measurement precision and a ≥98% success rate ensure you never second-guess your data.

• All-Weather Durability: IP67 waterproof rating and a working temperature range of -40°C to +55°C mean it performs in rain, snow, or extreme heat.

• Lightweight & Pocket-Sized: At just 430g (with batteries) and 141×81×53mm, it fits easily in your pocket or gear bag—perfect for all-day use.

Key Features to Transform Your Workflow

Our handheld laser rangefinder isn’t just for distance—it’s a multi-tool for measurements. Let’s break down the features that matter most:

1. Versatile Measurement Modes (GRM & BAM)

We’ve built two core modes to cover every scenario:

• General Ranging Mode (GRM):  Ideal for everyday use, with 4 sub-modes:

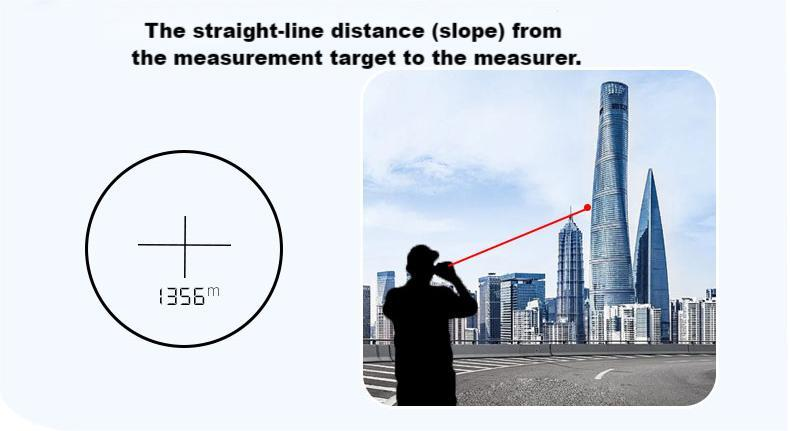

o   Single-Point Ranging: Tap the measurement button to get instant distance, azimuth (0–360°), and elevation angle (±90°) data.

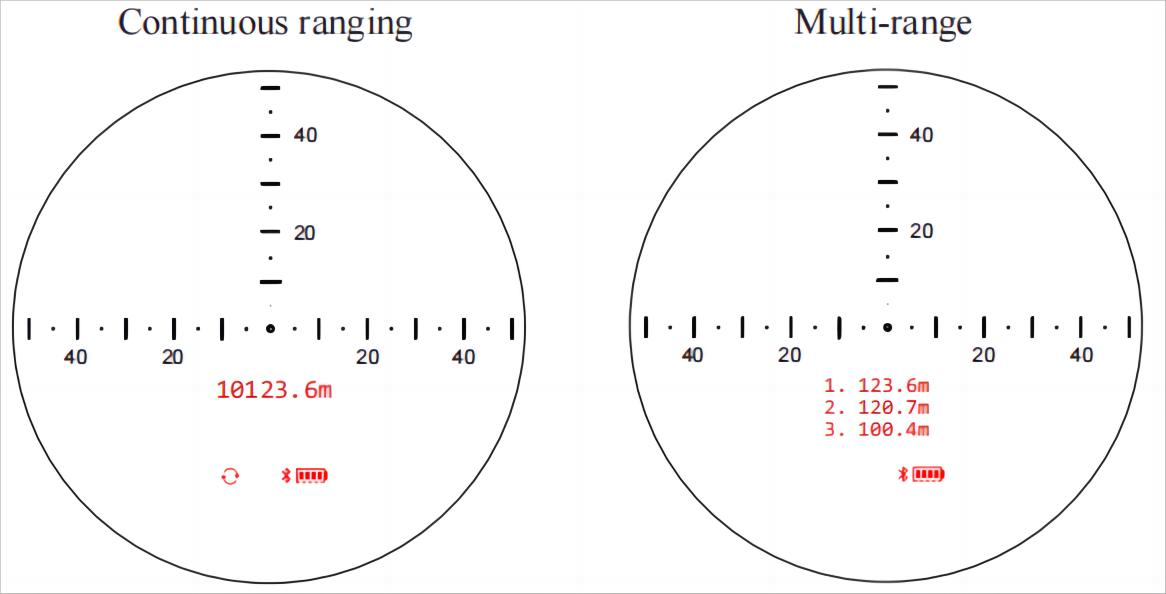

o   Scan & Multi-Target Ranging: Hold the button to scan an area—automatically detects up to 3 targets and displays their distances. Great for forestry surveys or mapping terrain.

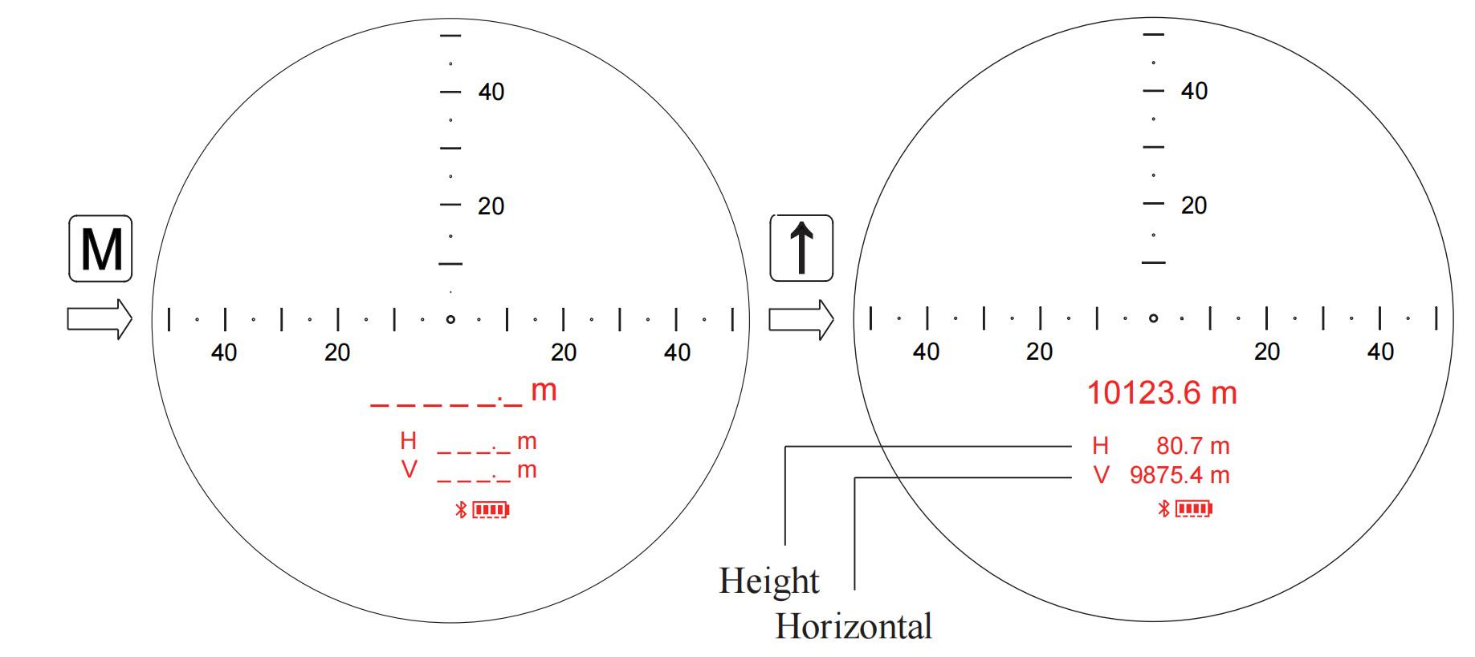

o   Height & Horizontal Ranging: Measures both horizontal distance and relative height (e.g., the height of a tree or building) in one tap.

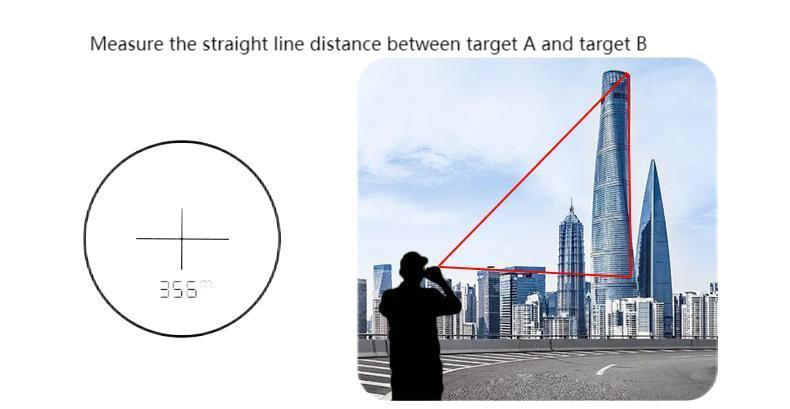

o   Two-Point Ranging: Calculate the distance between two targets (or the height of an object) by measuring two points—no extra math needed.

• Ballistic Calculation   Mode (BAM):

  A game-changer for hunters! Input your rifle and bullet specs (e.g., muzzle velocity, bullet weight), then let the device calculate:

    o   Scope adjustment values (MOA/mrad/click)

o  Bullet flight time (TOF)

o   Wind speed and direction impact

Perfect for long-range shots—no more manual calculations.

2. GPS & Bluetooth Connectivity

• GPS/Beidou Positioning: Get precise longitude/latitude coordinates for your targets (or your location) with ≤20m positioning accuracy. Essential for mapping or surveying.

• Bluetooth 5.0: Pair with our free IR Searcher APP (available on iOS App Store; Android  APK provided) to sync data, adjust settings remotely, or store measurement history. You can also connect to external devices like the Kestrel 5700 for real-time environmental data.

3. Long-Lasting Battery & Easy Maintenance

• Battery Life: 2× 16340  rechargeable batteries (compatible with CR123A) deliver 5,000+ measurements on a full charge—enough for a full day in the field.

• Low-Maintenance Design: Keep the optical glass (laser window, objective, eyepiece) clean with the included microfiber cloth, and remove batteries if storing for long periods to      prevent damage.

How to Choose the Right Model for You

Not sure which of our three models fits your needs? Use this quick guide:

Quick Start: How to Use Your Rangefinder in 5 Steps

1. Install Batteries: Open the battery compartment (twist the cover), insert 2× 16340 batteries (in series), and close securely.

2. Power On/Off: Press the “Range” button (↑) to turn on (defaults to GRM single-point mode). Hold “Range” +  “Mode” (M) for 2 seconds to power off.

3. Adjust Visibility: Use the diopter (±5D) to focus the display—perfect for users with vision correction.

4. Choose Mode: Press “M” to cycle GRM sub-modes; long-press “M” to enter settings and switch to BAM.

5. Measure: Aim at your target, press “Range” to capture data. For scanning, hold “Range” until done.

Safety & Troubleshooting Tips

• Safety First: Never look directly at the laser, and avoid ranging targets within 5m (to protect the device). Don’t disassemble the unit—this voids your warranty.

• Common Fixes:

• No response when pressing buttons? Check batteries (ensure they’re charged and inserted correctly) or OLED brightness (set to L-3 or Auto in bright light).

• Inaccurate angles? Calibrate the electronic compass (follow the app guide) and avoid magnetic interference (e.g., phones, laptops).

• “----” on display? The target is out of range, too small, or weather conditions (rain, fog) are affecting performance.

Ready to Upgrade Your Measurements?

Our Class 1 Handheld Laser Rangefinder is built for professionals and enthusiasts who demand accuracy, durability, and portability. Whether you’re hunting, surveying, or exploring, it’s the tool that simplifies complex measurements—so you can focus on the task at hand.

👉 Contact Us: Choose your model (03k/06k/10k) Every unit includes a carrying case, charger, data cable, wrist strap, and user manual—everything you need to get started.

Got questions? Email our support team at [marketing@newtron-tech.com]—we’re here to help!
